Manufacturers often struggle to create angled surfaces with high accuracy. Standard milling does not work well for every complex shape. Angular milling offers a practical answer. It makes angled cuts and surfaces with precision. It lowers errors, improves workflow, and allows complex designs without extra cost.

Angular milling also allows for more design ideas. This guide will explain how the process works and show the different types of angular milling and where they are used in practice.

Angular Milling

What is Angular Milling?

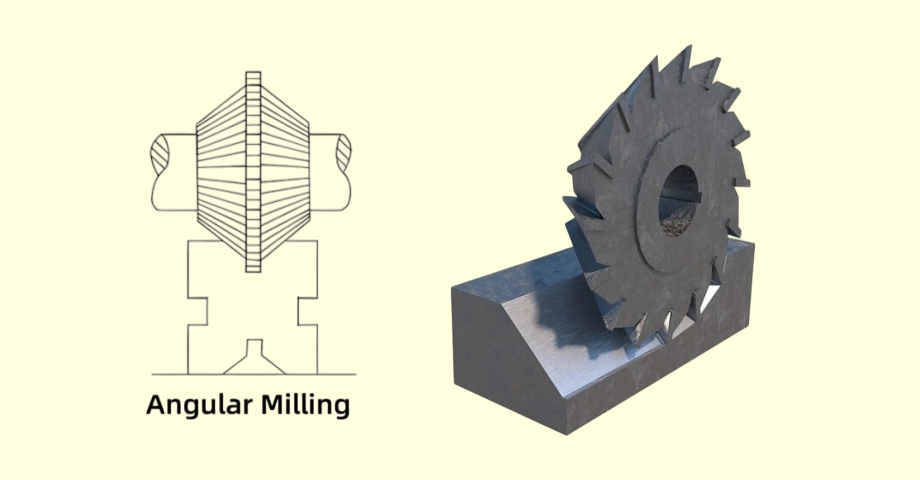

Angular milling is a method of machining in which the cutter removes material at an angle to its axis. The cutter is set to the desired angle and moves across the workpiece, allowing it to create angled surfaces such as chamfers, grooves, slots, and V-shaped cuts.

The angle of the cutter can be adjusted to match the needs of the part. This flexibility makes angular milling useful for a wide range of applications. Engineers often choose angular milling when a part requires more precision than simple flat or parallel surfaces can provide. It is a reliable way to produce accurate and complex shapes efficiently.

Principles of Angular Milling

Angular milling works by cutting material between the tool and the workpiece at a set angle. By adjusting the cutter’s position, manufacturers can create precise angled surfaces that standard milling cannot achieve.

Working Mechanism of the Milling Cutter

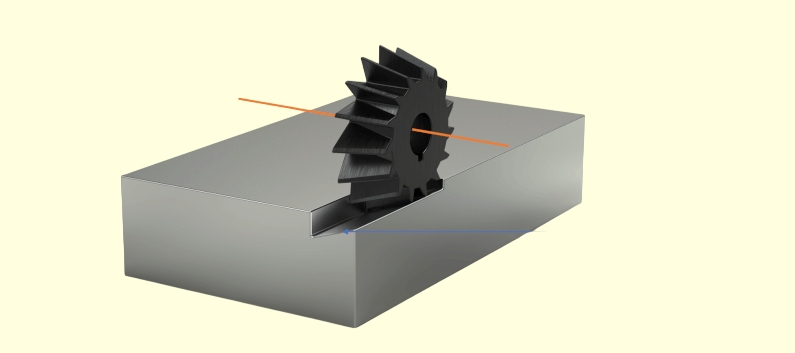

The milling cutter is mounted at a specific angle to the workpiece. As it rotates, its edges remove material along the angled path. The operator sets the spindle or cutter head to the correct angle before starting. The workpiece moves under the cutter, producing the sloped surface.

Common Angles and Cutting Positions

Angular milling often uses standard angles like 45°, 60°, or 90°. A 45° angle is common for chamfering edges, and angles of 60° or 90° work well for grooves and V-shaped slots. The cutter can tilt to one side for a single slope or move along intersecting paths to create complex shapes.

Relationship Between Tool and Workpiece

The cutter’s angle and position determine the cut’s slope and direction. If the alignment is off, the surface will not match the design. Precision fixturing keeps the workpiece steady while cutting. The closer the control between the tool and workpiece, the more accurate the finished part.

Principles of Angular Milling

Types of Angular Milling Cutters

Angular milling cutters are used to create angled surfaces with accuracy and efficiency. Depending on the shape and depth of the cut, different types serve different machining needs.

Single Angle Milling

A single-angle milling cutter has cutting edges on only one side of the tool. The angle usually ranges from 30° to 60°. It mainly cuts simple sloped surfaces, chamfers, and angular grooves.

This type is also suitable for making sharp corners or taper cuts on a workpiece. Because it focuses on one angle, it provides high precision for specific design needs. Single-angle cutters are easy to set up and work well for parts requiring straightforward angled machining.

Double Angle Milling

A double-angle milling cutter has cutting edges on both sides of the tool. Common angles include 45° or 60°. In a single pass, these cutters can machine V-grooves, dovetail slots, and complex angular shapes.

Double-angle cutters save time by reducing the need for multiple operations. They also engage both sides of the cut, which improves balance and lowers cutting forces. This makes them ideal for parts with symmetrical or intersecting angled features.

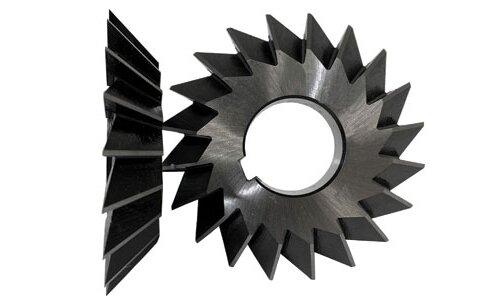

Single angle milling cutters

Applications of Angular Milling

Angular milling is widely used in industries that need accuracy, complex shapes, and smooth finishes. Its ability to cut angled surfaces makes it useful for heavy-duty and precision work.

Aerospace Components

Aerospace parts often have curved and angled surfaces that must meet tight tolerances. Angular milling produces high-precision turbine blades, brackets, and structural components. This reduces excess material while maintaining strength and improving aircraft systems’ performance and reliability.

Automotive Parts

Automakers use angular milling for gears, engine blocks, transmission components, and custom tooling. Chamfers and grooves made this way improve assembly and reduce wear during use. Angular milling allows high-volume production with consistent quality, keeping production lines efficient.

Industrial Machinery

Machine components, heavy equipment parts, and fixtures often need dovetails, V-grooves, and angled surfaces. Angular milling ensures accurate fits between moving parts, which improves durability. This precision is vital for machinery that handles high loads.

Consumer Products

Electronics, appliances, and custom hardware often have chamfered edges or angled slots. Angular milling creates clean, precise finishes that improve both function and appearance. It also makes products easier to assemble and safer to handle.

Advantages of Angular Milling

Angular milling offers several benefits that make it valuable for engineers and manufacturers. It combines accuracy with efficiency, helping industries meet complex design needs while controlling costs.

High Precision

Angular milling produces surfaces with tight tolerances and accurate dimensions. The cutter’s set angle ensures consistent results across multiple parts. This precision reduces errors and minimizes the need for secondary operations. Engineers can rely on it for components that demand exact fit and function.

Flexibility for Complex Geometries

Many parts today include angled slots, chamfers, and intersecting grooves. Angular milling can handle these shapes without using multiple tools or setups. Single and double angle cutters support a wide range of profiles. This flexibility allows more creative designs while keeping machining simple.

Improved Production Efficiency

Angular milling can reduce the number of passes and tool changes, shortening machining time. For example, double-angle cutters can create V-grooves in a single operation. Faster production helps manufacturers meet deadlines without compromising quality. Lower cycle times also save costs, especially in high-volume runs.

Compatibility with CNC Technology

CNC machines can control cutter angles and feed paths with high accuracy, making angular milling more effective by automating complex cuts. CNC systems improve repeatability, reduce human error, and expand design possibilities. They allow consistent results across large batches of parts.

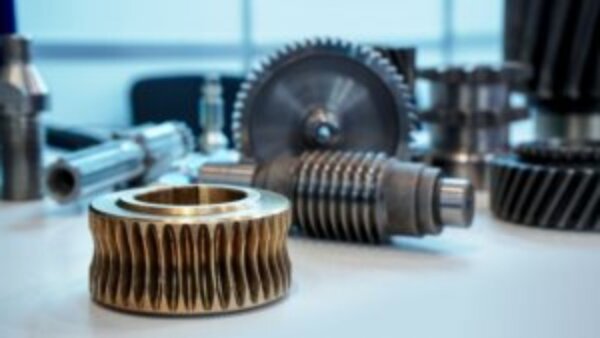

Angular Milling Parts

Design Considerations for Angular Milling

Successful angular milling begins with careful design. Proper planning ensures parts are easy to machine, accurate, and durable.

Preparing CAD Models for Milling

CAD models should clearly show each part’s angles, slopes, and chamfers. They should also include exact dimensions and tolerances to guide the machining process. Well-prepared models reduce mistakes and let the operator set the correct cutter angle.

Optimizing Part Geometry for Angled Cuts

Part geometry should allow smooth tool movement and consistent material removal. Avoid sharp transitions or deep, narrow pockets that could cause the cutter to deflect. Gentle slopes and accessible angles make milling easier and safer. Grouping angled features can reduce tool changes, saving time and maintaining accuracy.

Reducing Tool Stress and Wear

Tool life depends on cutting forces, feed rate, and material hardness. Using the correct cutter angle lowers unnecessary pressure on the tool. Adjusting speed and depth of cut prevents overheating or chipping. Proper fixturing keeps the workpiece steady and reduces vibration.

Tips for Angular Milling

When done correctly, angular milling can be very efficient. Small adjustments in setup and technique can greatly improve precision and extend tool life.

  • Choose the Right Cutter: Based on the part’s shape, pick single or double-angle cutters. Make sure the cutter material matches the hardness of the workpiece.
  • Set Accurate Angles: Before starting, double-check the spindle and cutter tilt. Even small deviations can affect surface accuracy.
  • Control Feed and Speed: Use the right feed rates and spindle speeds for the material. Too fast causes chatter; too slow reduces efficiency.
  • Secure the Workpiece: Firm fixturing prevents movement and vibration. This improves finish and prolongs tool life.
  • Plan Cuts Strategically: Sequence angled cuts to reduce tool changes and repositioning. This saves time and minimizes errors.
  • Monitor Tool Wear: Inspect cutters regularly. Replace or sharpen tools before wear affects precision.
  • Simulate Complex Cuts: When possible, use CAM software to simulate the milling path. This helps identify collisions or alignment issues before machining.
  • Maintain a Clean Work Area: Remove chips and debris frequently. Accumulated material can interfere with the cutter and surface finish.

Following these tips helps engineers and manufacturers achieve precise, high-quality results while keeping production efficient and cost-effective.

Conclusion

Angular milling is a flexible machining process that lets manufacturers create precise angled surfaces, grooves, chamfers, and complex shapes. It delivers high accuracy, efficiency, and adaptability, making it ideal for aerospace, automotive, industrial machinery, and consumer products.
