Stainless steel is widely chosen for its durability, corrosion resistance, and aesthetic appeal. It offers a reliable solution for projects that require strength and longevity. This post will cover key aspects of the stainless steel fabrication process and help you understand how it can be applied in various industries.
Want to know more about stainless steel fabrication and how it works? Let’s break down the fabrication process.

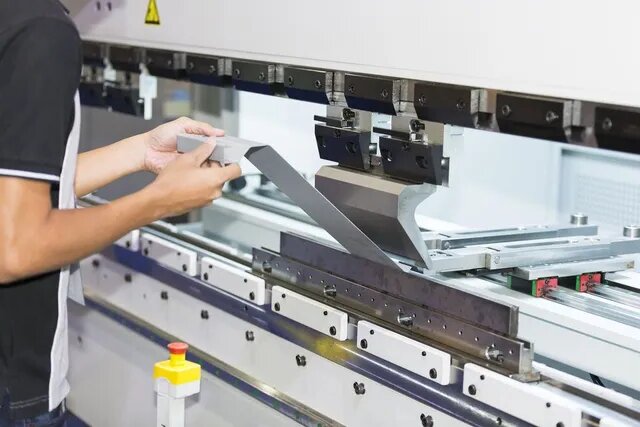

What is Stainless Steel Fabrication?
Stainless steel fabrication is the process of shaping stainless steel into finished products. This involves techniques such as cutting, welding, bending, and assembling. These methods create strong, corrosion-resistant parts that can be used for practical and decorative purposes. Stainless steel fabrication is commonly used in the construction, automotive, and medical equipment industries.
The fabrication process consists of several stages. First, the stainless steel is cut into the desired shape. Next, it is bent or formed to achieve the necessary angles. Welding is used to join different pieces together. Finally, the product may be finished with polishing or coatings to enhance its appearance and durability.

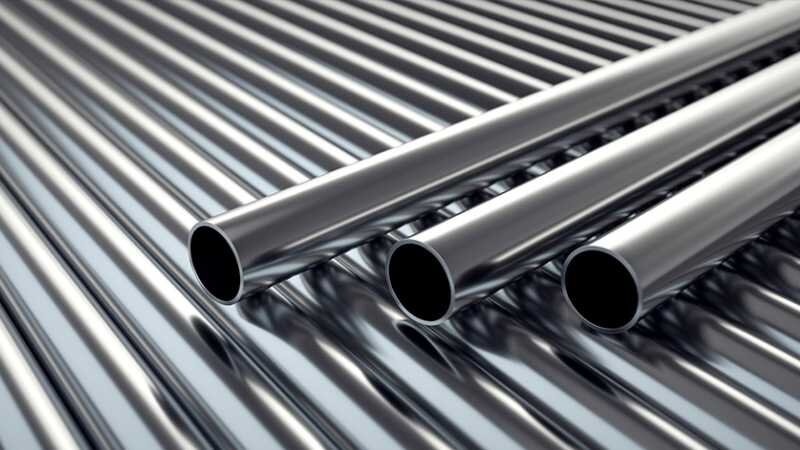

Types of Stainless Steel Used in Fabrication
Different types of stainless steel are chosen depending on the specific requirements of the fabrication project. Each type has unique properties that make it more suitable for certain applications.
Austenitic Stainless Steel
This is the most common type. It contains nickel and chromium, making it highly corrosion-resistant. It’s also non-magnetic and easy to weld.
- Grades: 304 (general use), 316 (extra corrosion resistance for marine or chemical environments).
- Uses: Food processing equipment, kitchen appliances, chemical tanks.
Ferritic Stainless Steel
Ferritic steel has less nickel, so it’s cheaper. It’s magnetic and resists stress corrosion well.
- Grades: 430 (standard for decorative trim), 409 (used in automotive exhausts).
- Uses: Automotive parts, industrial machinery, low-cost decorative panels.
Martensitic Stainless Steel
This type is hard and strong but less corrosion-resistant. It can be heat-treated for extra durability.
- Grades: 410 (basic cutlery), 420 (surgical tools).
- Uses: Knives, turbine blades, mechanical parts needing high strength.
Duplex Stainless Steel
Duplex combines austenitic and ferritic properties. It’s stronger than both and resists cracking.
- Grades: 2205 (popular for chemical/oil industries).
- Uses: Pressure vessels, pipelines, offshore oil rigs.
Key Properties of Stainless Steel That Affect Fabrication
Stainless steel’s unique characteristics present both opportunities and challenges in fabrication. Understanding these properties helps manufacturers select the right grades and processes for their specific applications.
Corrosion Resistance
Stainless steel contains chromium, which forms a layer that prevents rust. Higher-quality alloys, like 316 stainless steel, are more resistant to saltwater and chemicals.
Strength and Hardness
Martensitic stainless steels are rigid but less flexible, while austenitic grades become harder as they are worked. These properties affect the speed of cutting, tool choice, and machining settings.
Thermal Conductivity
Stainless steel has lower thermal conductivity than carbon steel, which means it retains heat in certain areas during welding. Careful heat control is needed during the welding process to prevent warping or changes in the material.
Work Hardening Characteristics
Austenitic stainless steels quickly become harder when worked. To prevent issues, this can require heating or annealing during shaping.
Magnetic Properties
Ferritic and martensitic stainless steels are magnetic, while austenitic grades are not. This is important for applications like electrical equipment and MRI machines, where the material’s magnetic response affects its function.
Formability Varies
Austenitic stainless steels are easy to shape, making them ideal for complex designs. Ferritic grades are more limited in formability, and martensitic types often need heat treatment before shaping.
Common Types of Stainless Steel Fabrication
Stainless steel fabrication involves various methods to meet specific industrial needs while preserving the material’s key strengths. These techniques turn raw stainless steel into functional parts with high precision.
Stainless Steel Sheet Metal Fabrication
This process works with thin materials, usually between 0.5mm and 6mm thick. Stainless steel sheets are highly flexible and perfect for creating electrical enclosures, kitchen equipment, and architectural features. Typical fabrication methods include:
- Precision laser cutting
- CNC punching operations
- Press brake forming
- Welding
Stainless Steel Pipe Fabrication
This process produces corrosion-resistant pipes used in essential applications. The smooth insides of stainless steel pipes prevent bacterial growth in medical systems and resist harsh chemicals in industrial settings. Techniques used include:
- Automated orbital welding
- Precision pipe bending
- Flange welding techniques
- Non-destructive testing methods
Stainless Steel Plate Fabrication
Plate fabrication deals with thicker materials that need to withstand high pressure and harsh conditions. This process turns heavy plates into components like reactor vessels, marine parts, and machinery. Key methods include:
- Plasma and waterjet cutting
- Heavy-duty rolling and forming
- Multi-pass welding procedures
- Post-weld heat treatment
Stainless Steel Structural Fabrication
Fabrication must balance strength and resistance to stress corrosion cracking for structural applications. This process creates frameworks in chemical plants, offshore rigs, and buildings. It involves:
- High-strength duplex alloys
- Precision cutting and drilling
- Controlled welding sequences
- Rigorous quality testing
Stainless Steel Custom Fabrication
Custom fabrication addresses specific engineering needs where standard parts won’t work. This service uses a variety of techniques to create:
- Prototype development parts
- Specialized processing equipment
- One-off architectural elements
- Precision medical components
Key Techniques in Stainless Steel Fabrication
Stainless steel fabrication involves several methods to transform raw materials into finished products. Here are some of the main techniques used in stainless steel fabrication.
Cutting Stainless Steel
Cutting stainless steel is the process of shaping the material into desired sizes or shapes. The cutting method depends on material thickness, precision needs, and budget.
Laser Cutting
Laser cutting uses a high-powered laser beam to cut through stainless steel easily. It creates clean, smooth edges and is perfect for detailed designs.
Plasma Cutting
Plasma cutting uses a high-temperature plasma arc to melt and blow away the material. It is fast and cost-effective, especially for cutting thicker stainless steel.
Waterjet Cutting
Waterjet cutting uses a high-pressure stream of water mixed with abrasive particles to cut through stainless steel. This method can cut thick materials without generating heat, preventing warping.
Bending Stainless Steel
Bending stainless steel shapes the material into various angles and curves. It is commonly used to make components like brackets, frames, and panels.
Press Brake Bending
Press brake bending uses a machine to apply force to stainless steel and bend it into the desired shape. The material is placed between a punch and a die, which turns it precisely. This method is ideal for creating accurate, repeatable bends in sheet metal.
Roll Bending
Roll bending creates curved shapes, such as cylinders or arcs. The material is passed through rollers that gradually bend it into the desired curve. This technique is commonly used for large, continuous bends in pipes or metal sheets.
Welding Stainless Steel
Welding stainless steel joins pieces together to create a finished product. Different welding methods are chosen based on the application, material thickness, and properties.
MIG Welding
MIG welding is a popular method for stainless steel. It uses a continuous wire electrode fed through a welding gun, which is shielded by an inert gas, usually argon. MIG welding is fast and easy to learn, making it great for high-volume production or repairs.
TIG Welding
TIG welding is more precise. It uses a tungsten electrode to create the weld, while the welder manually adds filler material and shields the weld with inert gas. TIG welding is ideal for thin stainless steel and high-quality, clean welds that require precision.
Spot Welding
Spot welding uses heat from an electric current to melt and fuse small areas of stainless steel. It is typically used for joining thin materials, such as those in the automotive and appliance industries. Spot welding is fast and efficient but works best for specific joint types.
Forming Stainless Steel
Forming stainless steel shapes the material into more complex parts. These techniques create products with deep or intricate shapes.
Deep Drawing
Deep drawing makes deep, hollow parts from stainless steel sheets. The material is drawn into a die cavity using a punch to form the shape. This method is often used to make containers, cups, and automotive parts, allowing for high-precision complex shapes.
Hydroforming
Hydroforming uses high-pressure hydraulic fluid to shape stainless steel. This method is ideal for creating parts with uniform thickness and complex shapes, such as automotive components. Hydroforming produces lightweight, strong parts with minimal material waste.
Key Factors in Stainless Steel Fabrication
Several factors influence the success and efficiency of stainless steel fabrication. Here are the key factors to consider:
Material Selection
Choose the right grade for your application. 304 works for most general uses, while 316 handles harsh environments better. Consider strength needs – duplex grades offer high strength for structural work. Each grade machines and welds differently.
Precision Requirements
Stainless steel moves during fabrication. Account for spring back when bending. Control heat input during welding to minimize distortion. Standard tolerances are ±0.5mm, but critical parts may need ±0.1mm.
Surface Finish Options
Finishes affect both looks and performance. Mill finish works for industrial parts. Brushed finishes hide scratches well. Mirror polish looks great but costs more. Bead blasting creates a uniform matte surface.
Cost Factors
Material grade impacts price – 316 costs more than 304. Complex designs take longer to make. Special finishes add cost. Higher volumes reduce the per-unit price. Balance quality needs with budget. Consider long-term value, not just upfront cost.
Benefits of Stainless Steel Fabrication
Stainless steel is a popular choice for fabrication due to its numerous advantages, making it an ideal material for a wide range of applications. Below are some key benefits of stainless steel fabrication:
Durability and Strength
Stainless steel offers exceptional strength-to-weight ratios, making it ideal for structural and load-bearing applications. Its high tensile strength ensures long-term durability, even under heavy use or extreme conditions.
Corrosion Resistance
The chromium in stainless steel forms a protective oxide layer, preventing rust and corrosion. This makes it perfect for harsh environments, such as marine applications, chemical processing, and outdoor structures.
Aesthetic Appeal and Finish Options
Stainless steel’s sleek, modern look enhances architectural and design projects. Stainless steel can be finished in various ways, from matte to glossy, allowing it to be customized for different aesthetic preferences.
Cost-Effectiveness and Longevity
While initial costs may be higher than other metals, stainless steel’s longevity reduces replacement and maintenance expenses. Its resistance to wear, corrosion, and extreme temperatures ensures a longer lifespan, making it a wise investment.
Applications of Stainless Steel Fabrication
Stainless steel fabrication is crucial in various industries thanks to its unique properties. Below are some key industries where stainless steel fabrication is widely applied:
Industrial and Manufacturing Uses
Stainless steel is widely used in machinery, tooling, and industrial equipment due to its strength and wear resistance. Common applications include:
- Conveyor systems
- Storage tanks
- Processing equipment
- Heavy-duty fasteners
Chemical and Petrochemical Industries
The material’s corrosion resistance makes it essential for:
- Chemical storage tanks
- Pipelines and valves
- Reactor vessels
- Heat exchangers
Food Processing and Pharmaceutical Equipment
Stainless steel’s hygienic properties are critical for:
- Mixing tanks
- Conveyor belts
- Sterilization equipment
- Cleanroom fixtures
Automotive and Aerospace Components
Used in high-performance applications:
- Exhaust systems
- Fuel lines
- Aircraft fittings
- Engine components
Electronics and Electrical Enclosures
Provides protection and EMI shielding for:
- Control panels
- Server racks
- Sensor housings
- Power distribution units
Kitchenware and Appliances
Popular in consumer goods for:
- Cookware and cutlery
- Refrigerator interiors
- Commercial kitchen equipment
- Sinks and countertops
Conclusion
Stainless steel fabrication transforms stainless steel into various products through cutting, bending, welding, and assembling. It is a versatile material for its strength, durability, corrosion resistance, and aesthetic appeal. Stainless steel fabrication is crucial in industries ranging from manufacturing and chemical processing to food and pharmaceutical equipment.
