Manufacturers often struggle to make strong, precise, and affordable rubber parts. Customers want products that last, arrive quickly, and cost less. Without the right method, meeting these expectations is hard. Rubber injection molding addresses these challenges by providing speed, accuracy, and consistent results.
This process is efficient and flexible. It is used in many industries, which makes it worth understanding. Let’s look at how it works and why it could be the right choice for your production needs.
What is Rubber Injection Molding?

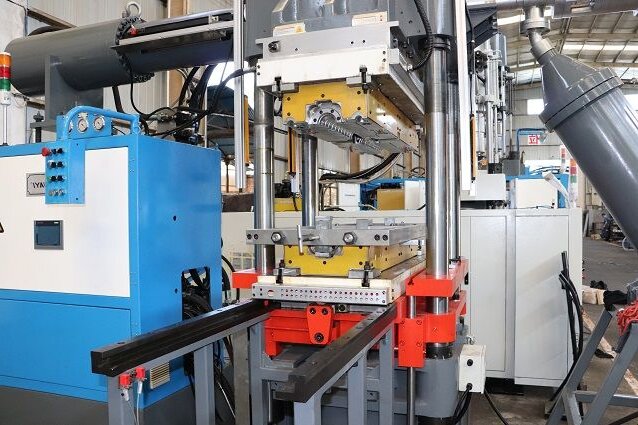

Rubber injection molding is a process that uses heat and pressure to shape rubber into finished parts. It starts with raw rubber, usually in strips or pellets. These are fed into an injection unit where they are heated until soft and pliable. Once ready, the rubber is injected into a closed mold under high pressure. The mold cavity is shaped to match the final part.

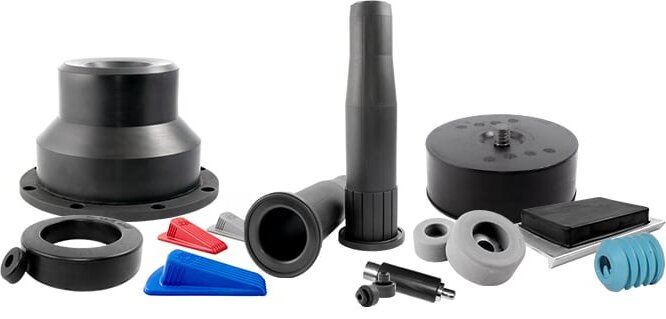

After the rubber cools and cures, the mold opens, and the finished part is released. This method allows consistent production of parts with detailed shapes and tight tolerances. The process is fast and repeatable, making it ideal for mass production.
The Rubber Injection Molding Workflow: Step-by-Step
Rubber injection molding follows a clear sequence that turns raw rubber into finished parts. Each stage helps shape, cure, and deliver consistent results.
Step 1: Preparing the Material
The process starts by selecting the right rubber compound for the part. Engineers pick materials based on flexibility, heat resistance, or chemical stability. The rubber usually comes in strips or pellets. Before molding, the compound is inspected and sometimes pre-treated to ensure uniform quality.
Step 2: Feeding and Plasticizing
The prepared rubber enters the injection unit through a hopper. A screw pushes the rubber forward while applying heat and pressure. This softens the rubber and makes it flow easily without damaging its properties. By the end of this step, the material is ready to be injected into the mold.
Step 3: Injecting into the Mold

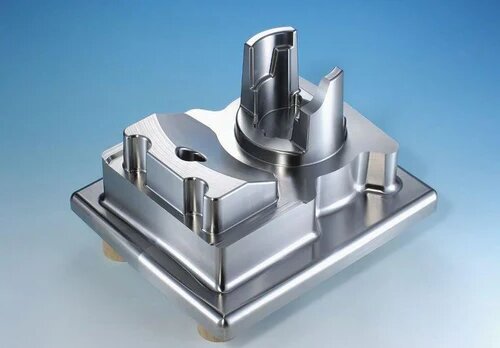

The softened rubber is injected into a closed mold at high pressure. The mold cavity matches the exact shape of the finished part. High pressure ensures the rubber fills even the smallest features and corners.
Step 4: Curing the Rubber
Once the mold is full, the rubber is exposed to heat for curing, also called vulcanization. The heat triggers a chemical reaction that strengthens the rubber’s structure. Curing gives the part durability, elasticity, and resistance to wear. The cycle time depends on the type of rubber and the part’s thickness.
Step 5: Ejecting the Part
After curing, the mold opens, and the finished part is ejected. Ejector pins or mechanical systems push the part out without damaging it. The part may then be trimmed to remove excess material or flashing. Finally, it undergoes quality checks before packaging and shipment.
Materials for Rubber Injection Molding
The material you choose shapes the part’s performance. Different rubbers have different strengths. Picking the right one ensures the part lasts and works well.
Natural vs. Synthetic Rubber
Natural rubber comes from latex collected from trees. It is strong, flexible, and stretches easily. It’s ideal for parts that need high elasticity. But it doesn’t handle heat, sunlight, or chemicals very well.
Synthetic rubber is made to handle tougher conditions. Types like silicone, nitrile, and EPDM resist heat, oil, and weather, making them more versatile for modern manufacturing.
Popular Rubber Types
Silicone is clean, stable, and handles extreme temperatures. It’s great for medical or food products. Nitrile works well in automotive parts exposed to fuel or oil. EPDM is perfect for outdoor seals and gaskets because it resists sunlight and ozone. Fluoroelastomers, like Viton, are used in aerospace or chemical parts that face heat and harsh fluids.
Choosing the Right Rubber
Think about where and how the part will be used. Check temperature, chemical exposure, and mechanical stress. Engine parts need heat—and oil-resistant rubbers, and outdoor seals need weather—and sunlight-resistant ones. Budget matters, too. Balancing performance and cost helps you pick the best option.
Process Parameters and Control
Controlling process parameters is key to producing consistent, strong, and reliable rubber parts. Each factor, from heat to timing, directly affects the outcome.
Temperature and Pressure Management
Temperature control ensures the rubber flows well without degrading. For example, silicone rubber is often heated to 180–200 °C in the injection unit, while the mold is maintained at 40–60 °C for proper curing. Nitrile rubber may require slightly lower injection temperatures, around 150–170 °C.
Pressure is equally critical. Typical injection pressures range from 800 to 1,500 bar, depending on part size and material. High pressure ensures the mold is filled, capturing fine details. Low pressure can leave voids or incomplete features, while excessive pressure may cause flashing or internal stress.
Injection Speed and Cycle Time
Injection speed controls how fast the rubber enters the mold. A moderate speed of 30–60 cm³/sec is common for medium-sized parts. Too fast risks trapped air and uneven filling; too slow can leave parts incomplete.
Cycle time includes filling, curing, and cooling. For silicone parts, a typical cycle might be 2–5 minutes, while nitrile components may need 1–3 minutes. Shorter cycles increase output but must still allow full curing to maintain strength and durability.
Role of Automation and Monitoring
Automation improves repeatability by keeping temperature, pressure, and timing consistent. Sensors and control systems track each stage of the process. For instance, pressure sensors with ±1 bar accuracy and temperature probes with ±1 °C precision can detect deviations in real-time.
Real-time monitoring catches issues before they affect quality. Automation also reduces labor needs and increases efficiency. By combining precise control with advanced monitoring, manufacturers ensure every part meets required standards.
Advantages of Rubber Injection Molding
Rubber injection molding has clear advantages. It combines speed, quality, and flexibility, making it popular across many industries.
High Production Efficiency
This process can quickly produce large volumes. Automated machines and short cycle times keep output steady and predictable. Faster production means shorter lead times, which is ideal for high-demand industries.
Consistent Part Quality
Precision molds and controlled process parameters ensure every part matches the design. Variations are minimal, even across thousands of cycles. Consistent quality reduces rework and improves reliability.
Support for Complex Designs
Injection molding handles intricate shapes and fine details. Parts can have undercuts, thin walls, or multiple cavities. This flexibility allows designers to meet both functional and aesthetic needs.
Reduced Material Waste
The process uses only the rubber needed to fill the mold, so waste is much lower than with compression molding. Less waste means cost savings and more efficient use of materials.
Strong Physical Properties
Curing during molding strengthens the rubber. Parts have good elasticity, durability, and resistance to heat, chemicals, and wear. These qualities make molded rubber components suitable for demanding applications.

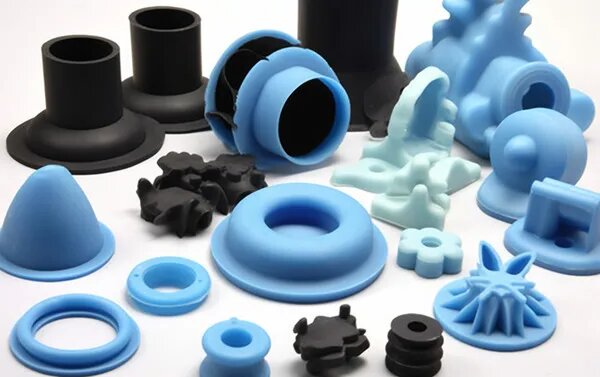

Applications Across Industries
Rubber injection molding is used in many fields because it produces durable, precise, and cost-effective parts. Each industry benefits from its ability to meet high-performance demands.
Automotive
Automakers use molded rubber for seals, gaskets, vibration dampers, and hoses. These parts must resist heat, oil, and constant stress. Consistent quality ensures safety and long-term performance.
Aerospace
In aerospace, rubber components face extreme conditions. Seals, insulation parts, and vibration control elements must handle high altitudes, temperature swings, and strong mechanical forces. Injection molding keeps these parts reliable.
Home Appliances
Molded rubber provides seals, grommets, and protective parts for washing machines, refrigerators, and kitchen devices. These components prevent leaks, reduce noise, and extend appliance life.
Electrical
The electrical sector uses molded rubber for connectors, insulators, and protective covers. Rubber resists electricity, heat, and environmental exposure, helping keep systems safe and reliable.
Industrial Equipment
Heavy machinery and industrial tools rely on molded rubber for shock absorbers, seals, and protective boots. These parts endure pressure, chemicals, and tough environments, reducing downtime and keeping machines running smoothly.
Conclusion
Rubber injection molding is a fast, precise, and flexible way to make durable rubber parts. It handles high-volume production and complex designs and ensures consistent quality while minimizing material waste. Industries from automotive to medical rely on it for long-lasting, reliable components.
Want to produce high-quality rubber parts quickly and reliably? Contact us today to discuss your project and find a custom solution.
