Are you searching for a reliable way to cut complex, three-dimensional parts? Many manufacturers struggle with producing detailed designs while keeping tight tolerances. 3D laser cutting solves these challenges. It delivers high accuracy, quick production cycles, and flexibility for many materials and shapes.
3D laser cutting combines speed, precision, and adaptability. It supports industries that need both high quality and cost control. Want to know how it works?
What is 3D Laser Cutting?

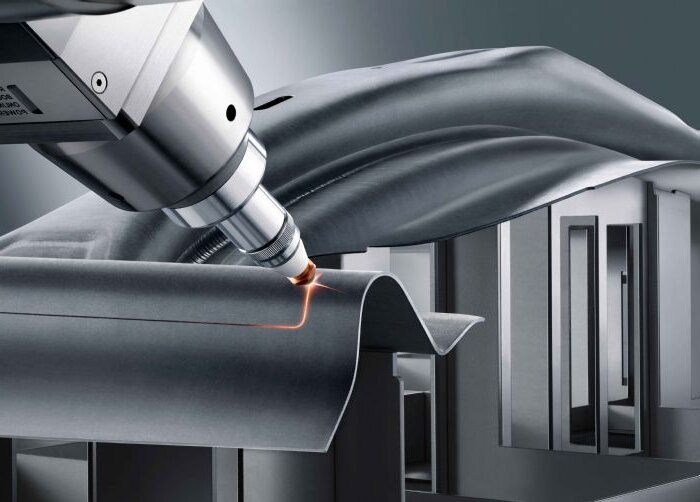

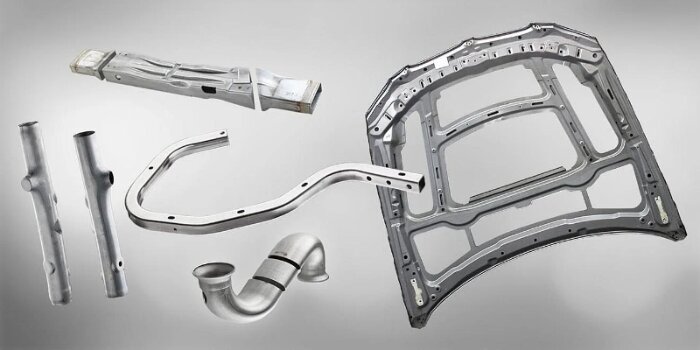

3D laser cutting is a method that uses a focused laser beam to cut, trim, or shape metal parts in three dimensions. Unlike flat laser cutting, which works only on sheet materials, 3D laser cutting can handle curved surfaces, tubes, formed parts, and welded assemblies. The laser beam targets a small spot, producing heat that melts or vaporizes the material. A stream of gas then blows away the molten metal, leaving a smooth and precise edge.
A standard laser cutter moves in two directions, X and Y. A 3D laser system works differently. It uses a robotic arm with several joints. This arm moves in six directions, much like a human arm. At the end of the arm is the laser tool, which can turn and adjust to aim at any angle on a 3D part.
The Science Behind Laser Cutting
Laser cutting uses a concentrated beam of light. The laser focuses on a very small spot, often less than a millimeter wide. This high energy quickly raises the material’s temperature. Depending on the material and the power level, the surface melts, burns, or vaporizes.
A stream of gas—such as oxygen, nitrogen, or air—blows away the molten metal or debris. This prevents buildup along the edge and keeps the cut clean. The mix of heat and gas flow makes laser cutting accurate and easy to control, even on detailed shapes.
How 3D Laser Beams Work on Different Materials？
When a 3D laser beam hits metal, the material absorbs the light and turns it into heat. Different metals react in various ways. Aluminum reflects more light, so it needs higher power to cut. Stainless steel absorbs energy better, so it can be cut at lower power.
Lasers also cut non-metal materials like plastics, ceramics, and composites. Each type needs specific settings for power, focus, and gas. This adaptability allows 3D laser cutting to serve industries such as automotive, aerospace, and electronics, where many materials are used.
Role of CAD and Programming
Computer-aided design (CAD) plays a key role in 3D laser cutting. Engineers design parts in CAD software, creating digital models with exact dimensions. These models are turned into cutting instructions using computer-aided manufacturing (CAM) software.
The machine follows these instructions to move the laser head. Multi-axis systems guide the beam along curves, angles, and complex surfaces. Changes can be made quickly in the digital file without switching tools.
Core Components of a 3D Laser Cutting Setup
A 3D laser cutting system combines optics, motion control, and software to achieve precise and flexible results. Each part of the setup has a specific role in ensuring accuracy, efficiency, and adaptability.
Laser Source and Optics
The laser source creates the beam that does the cutting. Common types are fiber lasers, CO₂ lasers, and solid-state lasers. Fiber lasers are widely used because they are efficient and can cut reflective metals such as aluminum and copper.
Optics guide and focus the beam onto the workpiece. Lenses and mirrors shape the beam into a fine spot, which increases energy density for clean edges. Adjustable optics let the system change the beam size to match different materials and thicknesses.
Motion Control and Robotic Arms
3D laser cutting needs movement in many directions. Motion systems with multiple axes allow the laser head to reach angled and curved surfaces. Some setups use robotic arms to move the laser around complex parts with precision.
Motors and sensors control these systems to maintain high accuracy, even at fast speeds. Smooth, programmed movement is what makes 3D laser cutting effective for detailed designs and varied part shapes.
Workholding and Fixtures

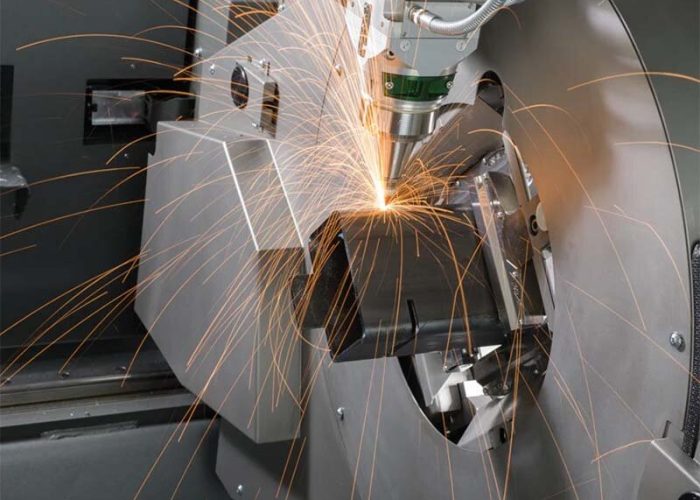

Workholding keeps parts steady during cutting. Fixtures clamp or support the material so it stays in place under the laser beam and gas flow. Custom fixtures are often required for tubes or welded parts.
Good fixturing reduces vibration, improves edge quality, and keeps cuts consistent. It also shortens setup time, since parts can be loaded and unloaded quickly while staying aligned.
Software and Automation Systems
Software links design to production. CAD models are translated into machine cutting instructions. Advanced programs can optimize cutting paths, lower material waste, and adjust power settings automatically.
Automation takes this further. Robots can handle loading and unloading, while sensors check quality in real time. Integration with factory networks helps managers track jobs, schedule production, and keep results consistent across different lines.
Step-by-Step 3D Laser Cutting Process
3D laser cutting follows a clear workflow. Each stage—design, setup, cutting, and inspection—helps ensure accuracy, efficiency, and consistent results.
Preparing the Digital Design File
The process begins with a CAD model of the part. Engineers create the design with all required dimensions, curves, and cut lines. CAM software then converts this file into machine code, which defines the laser’s paths, speed, and power settings.
Simulation tools often test the program before production. This step catches errors, avoids collisions, and reduces waste by verifying the process before the first cut.
머신 설정 및 보정
Operators prepare the machine by choosing the correct optics, nozzles, and assist gas. They then calibrate the system by setting focus, aligning the beam, and checking power output.
The workpiece is fixed in place using clamps or custom fixtures. Multi-axis systems or robotic arms are adjusted to match the part’s shape. Proper setup ensures the laser can reach every surface without issues.
Cutting Execution and Real-Time Monitoring
Once setup is complete, the machine runs the cutting program. The laser follows its path while sensors monitor focus, temperature, and gas flow.
Real-time monitoring detects problems like overheating, misalignment, or incomplete cuts. Operators can adjust settings right away, while advanced automation can correct minor errors automatically without halting production.
Post-Cutting Finishing and Quality Checks
After cutting, parts may need small finishing steps such as 디버링, cleaning, or applying coatings. Some materials require 세련 to meet final quality standards.
Quality checks confirm accuracy and surface condition. Tools like calipers, laser scanners, or coordinate measuring machines measure the finished parts. This step ensures the product meets all specifications before it moves to assembly or shipping.
산업 전반의 애플리케이션
3D laser cutting is used in many industries that require accuracy, speed, and flexibility. Its ability to work with complex shapes and different materials makes it valuable for both prototypes and large-scale production.
자동차
In the automotive sector, 3D laser cutting is used for body panels, exhaust parts, and 구조적 구성 요소. It cuts curved surfaces and welded assemblies without special tooling. Automakers benefit from shorter production times and lightweight designs made possible with materials like aluminum and high-strength steel.
의료 기기
Medical manufacturers rely on 3D laser cutting for surgical tools, implant parts, and custom housings. The process is precise and produces smooth finishes. Since it is non-contact, it reduces the risk of contamination or material damage.
건축학
Architects use 3D laser cutting for decorative panels, building frameworks, and custom features. It works well with metals such as steel and aluminum, allowing complex designs that are both strong and visually appealing.
가전
Electronics companies apply 3D laser cutting to casings, 괄호, and internal parts. The method is well-suited for thin metals and detailed cuts required in compact devices. It also supports fast prototyping, which helps bring new designs to market quickly.
Benefits of Using 3D Laser Cutting
3D laser cutting offers manufacturers clear advantages. It improves part quality, reduces costs, and speeds up production. Its versatility makes it useful for simple and complex projects across different industries.
Complex Geometry Capabilities
Multi-axis movement allows 3D laser systems to cut along curves, angles, and irregular surfaces. They can process tubes, formed parts, and welded assemblies without repositioning. This gives designers more freedom to create unique shapes while saving manufacturers time by avoiding extra operations.
높은 정밀도와 정확성
The focused laser beam produces narrow cuts and smooth edges with little distortion. Tight tolerances are possible even on detailed patterns and small features. Because the process is contactless, there is no tool wear, ensuring consistency across large production runs.
생산 속도와 효율성
3D laser cutting is faster than many traditional methods. Programmed paths allow quick changes between jobs, and no tooling adjustments are needed for new designs. This shortens setup time and supports both rapid prototyping and large-scale production.
Reduction of Material Waste
The laser removes only a thin line of material, while optimized cutting paths minimize scrap. Nesting software arranges parts closely together on the sheet, improving raw material use. This lowers costs and supports more sustainable manufacturing practices.
과제와 한계
3D laser cutting delivers many benefits, but companies must also weigh the challenges before using it. These affect cost, material options, and day-to-day operations.
Initial Investment and Equipment Costs
The upfront cost of 3D laser cutting machines is high. The system includes advanced lasers, motion controls, and automation features. Adding robotic arms or custom fixtures raises the cost even more. For smaller businesses, this can be a barrier, although long-term savings and efficiency often help balance the investment.
Material Thickness and Power Requirements
Lasers work best on thin to medium-thickness metals. Very thick materials need more power, which slows the process and raises energy use. Reflective metals like copper and brass may need specialized lasers to cut consistently. Compared to mechanical cutting, this reduces material flexibility.
Maintenance and Operational Expertise
To stay accurate and reliable, 3D laser systems require regular maintenance. Optics must be cleaned, gas supplies checked, and software kept up to date. Skilled operators are also needed to set up programs, calibrate equipment, and solve problems. Without proper training, efficiency and product quality can suffer.
결론
3D laser cutting is a precise and adaptable method for producing complex metal parts. It works on curved surfaces, tubes, and assemblies while reducing setup time and material waste. The process delivers accuracy, speed, and consistency across industries such as automotive, medical, architecture, and electronics.
Ready to turn your ideas into reality with 3D laser cutting? 지금 바로 문의하세요 to discuss your project and request a quote.
