Many precise parts need more than one diameter on the same shaft. This is where step turning plays an important role. If you’re working with rotating parts or shafts that require multiple levels or shoulders, step turning is a suitable method for creating those shapes. It provides a reliable and accurate method for obtaining the results you need.
This post breaks down the process, shows how it works, and helps you decide when to use it. Keep reading to learn the basics and avoid common mistakes.

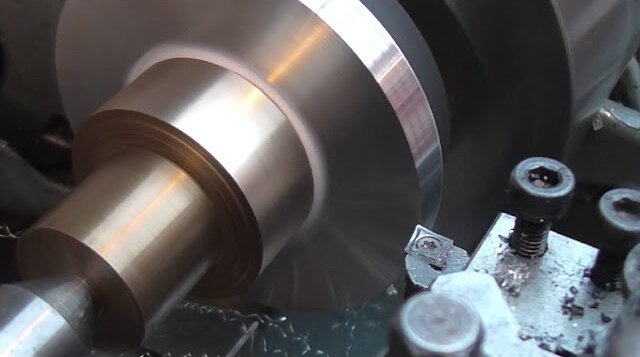

What is Step Turing?
الخراطة التدريجية هي طريقة خراطة تُنشئ قطرين مختلفين أو أكثر على قطعة عمل مستديرة واحدة. تستخدم مخرطة للقطع على طول المحور عند نقاط ثابتة، وإزالة المواد على خطوات.
What makes step turning unique is the sharp 90° shoulder between each diameter. This clean transition is the “step” that defines the process. It’s often used when different sections of the part serve other purposes, such as fitting into bearings, housings, or couplings.

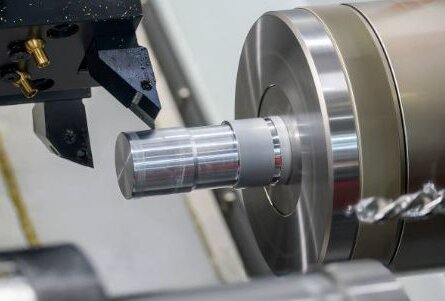

Understanding the Purpose of Step Turning
Step turning is not just about cutting different sizes. It’s used to manufacture parts that meet stringent design and assembly requirements.
Creating Multiple Diameters on a Single Part
Many parts need different diameters along their length. For example, one section might need to fit into a bearing while another connects to a gear. Step turning helps form these shapes in a single setup, saving time and ensuring accurate cuts.
Improving Assembly Fit and Function
A good fit is critical in mechanical systems. A tight or loose fit can lead to failure. Step turning allows for precise control over each diameter and step. This improves the alignment, connection, and movement of parts during use.
Enabling Precise Part Geometry
Some parts need flat shoulders, sharp corners, and exact lengths between steps. Step turning helps make these features with clean transitions. This ensures the part works as designed and meets quality standards.

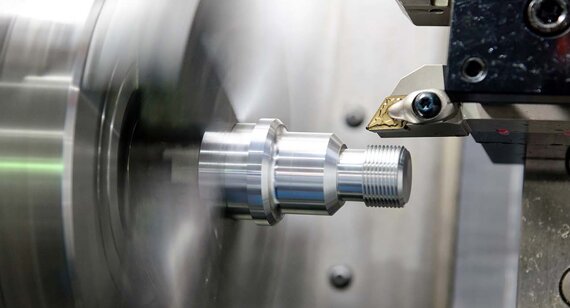

How Does a Step Turning Process Work?
Step turning follows a clear set of steps to produce accurate, stepped profiles on a cylindrical workpiece.
Setting Up the Lathe Machine
Mount the workpiece firmly in the chuck. Make sure it is centered and stable. Choose the right tool for the material. Set the cutting speed, feed rate, and depth of cut. Use a tool post or CNC program to control the tool path.
Rough Cutting
Begin with a rough cut to remove excess material. This step shapes the workpiece close to the final size. It helps reduce stress on the tool during final cuts, making the next steps faster.
Step Cutting
Now, cut each diameter in sequence. Move the tool along the axis and stop at the marked point. Then, reduce the diameter for that section. Repeat this for each step. Maintain clean 90° shoulders between diameters.
التشطيب
Once all steps are cut, use a light finishing pass to improve surface quality. Check each diameter with calipers or micrometers. Ensure the step heights and lengths comply with the design specifications.
Materials Best Suited for Step Turning
Step turning works with many materials, but some give better results than others. Material type affects surface finish, tool wear, and cutting speed.
المعادن شائعة الاستخدام
Step turning is often used on metals like:
- فُولاَذ
- الألومنيوم
- نحاس
- نحاس
- الفولاذ المقاوم للصدأ
These metals offer good strength and can be machined with standard tools. Aluminum cuts easily and is excellent for fast production. Steel produces strong, wear-resistant parts but may require more complex tools.
البلاستيك والمركبات
Some plastic materials also work well with step turning, such as:
- نايلون
- Delrin (POM)
- بتف
- أكريليك
Plastics are easier to cut but may require slower speeds to avoid melting. Composite materials can also be turned, but tool wear may increase.
Material Properties That Affect Machining
Key properties to consider include:
- Hardness: Harder materials need stronger tools and slower speeds.
- Ductility: Softer metals may form burrs or deform.
- Thermal conductivity: Poor heat flow can affect surface finish.
- Chip formation: Good chip control helps maintain clean steps.
Advantages of Step Turning
Step turning is widely used because it’s reliable, easy to set up, and delivers accurate results. It works well for both one-off parts and large runs.
Simple Process with Precise Control
The process is straightforward. Operators or CNC programs can control the tool path with high accuracy. Each diameter and step length can be set precisely. This enables easy meeting of tight tolerances and consistent results across all parts.
Cost-Effective for Repetitive Designs
Once set up, step turning is quick to repeat. That lowers labor time and tooling costs. It’s a good choice for shafts, spacers, and other parts used in high volumes.
Efficient for Creating Multi-Diameter Features
Instead of switching machines or setups, all diameter changes are made in one pass. This saves time and keeps the parts aligned. The result is faster production with fewer errors.
العيوب والقيود
Step turning is proper, but it has some limitations. Knowing them helps you decide when it’s the correct method.
Not Ideal for Complex Profiles
Step turning only works for straight, stepped shapes. It cannot make curves, tapers, or deep grooves. More complex parts need other turning methods or milling.
Multiple Tool Changes May Be Required
Different materials or step sizes may need tool changes. Harder metals might need coated tools. Smaller steps may need finer tools. These changes take time and affect cycle speed.
Surface Marks at Step Transitions
The sharp corners between steps can leave visible tool marks. If the part requires a smooth finish or close contact, additional finishing, such as تلميع أو طحن, may be necessary.
Applications of Step Turning
Step turning is used across various industries where parts require multiple diameters or smooth transitions.
Automotive Shafts and Axles
Many car parts, such as transmission shafts, wheel axles, and steering rods, utilize step turning. These parts need different diameters to fit bearings, gears, or seals. Step turning ensures proper alignment and strength.
مكونات الفضاء الجوي
In aerospace, weight and precision matter. Step turning helps make lightweight shafts, linkages, and مهمات الربط with tight tolerances. The clean steps facilitate assembly and minimize play between parts.
Machinery Parts and Spacers
General machinery uses many stepped parts—like bushings, spacers, and couplings. Step turning enables these parts to be produced quickly and accurately, ensuring machines run smoothly.
Step Turning vs. Other Turning Methods
Step turning is one of several turning techniques. It stands out for making sharp, clean diameter changes. But other methods serve different part shapes.
Step Turning vs. Taper Turning
Step turning makes flat, 90° transitions between diameters. Taper turning creates a gradual slope from one diameter to another. Tapered parts are often used in tools, shafts, or connections that need a smooth fit or easy release.
Step turning is better for clear shoulder steps. Taper turning is better for angled surfaces or smooth engagement.
Step Turning vs. Contour Turning
Contour turning shapes complex curves or flowing profiles. It utilizes CNC programming to guide the tool along smooth paths. Step turning, in contrast, only cuts straight steps with sharp corners.
Contour turning is used when the part has no flat sections or needs smooth changes. Step turning works when clean; stepped profiles are required.
Best Practices for Successful Step Turning
Good results in step turning depend on setup, tool care, and correct machining settings. These tips help improve quality and reduce issues.
Optimal Feed Rate and Cutting Speed
Choose feed and speed based on material type. Soft metals like aluminum allow faster speeds. Harder materials, such as stainless steel, require slower settings. Keep the feed rate steady to avoid tool marks and chatter.
Coolant Usage and Chip Removal
Use coolant to reduce heat and improve surface finish. It also helps extend tool life. Clear chips often, especially when cutting deep steps. Built-up chips can damage the part or break the tool.
Preventing Tool Wear and Part Deformation
Use sharp tools and inspect them often. Worn tools leave rough finishes and can miss size targets. For thin or long parts, support the workpiece with a tailstock or steady rest to stop bending during cuts.
خاتمة
Step turning is a practical turning method used to create stepped diameters on a single part. It plays a crucial role in manufacturing shafts, spacers, and other precision components. The process is simple, accurate, and cost-effective for both small batches and mass production.
Are you looking for high-precision turned parts with tight tolerances and fast lead times? Please send us your drawings and get a quick quote today.
