Many machining shops often run into problems when working with carbon steel. This material is strong, but it can wear down tools fast. Parts may also bend out of shape, or the surface finish might not meet customer expectations. However, knowing how carbon steel behaves can make a big difference. With the proper methods and a few changes, you can improve your results.
Carbon steel machining needs clear steps, proper tool choices, and a focus on detail. Good planning helps you avoid issues like excessive tool wear or part distortion. Choosing the right cutting speeds, feeds, and coolants makes a big difference. Understanding the steel’s grade and condition lets you get the best results.
Curious about the key methods and how to get better outcomes with carbon steel? The following sections break down proven tips and best practices.
What Is Carbon Steel?
Carbon steel is an alloy made mostly of iron and carbon. The carbon content usually ranges from 0.05% to 2.0%. Higher carbon levels make the steel harder and stronger, but less ductile. Lower carbon grades are easier to machine and form.

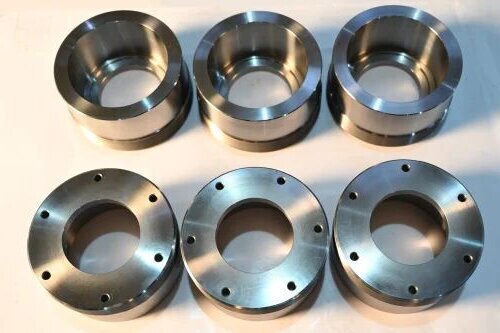

Machining carbon steel creates parts for many industries—automotive, construction, tools, and machinery. Shops often work with it because it’s easy to source, cost-effective, and comes in many grades.
Types of Carbon Steel and Their Machinability
Different types of carbon steel act differently during machining. Choosing the right steel grade helps reduce tool wear and improve production speed.
Low Carbon Steel (Mild Steel)
Low carbon steel has less than 0.3% carbon. Common grades include AISI 1008, 1010, and 1018. These steels are soft, flexible, and easy to cut. They are a good choice when you want longer tool life and a smooth surface finish. They also resist cracking during forming and bending.
However, since they’re soft, they may not hold fine threads or close tolerances very well. You may need to reduce the feed rate slightly to prevent surface smearing.
Mittlerer Kohlenstoffstahl
Medium carbon steel contains between 0.3% and 0.6% carbon. Typical grades are AISI 1040, 1045, and 1144. These steels are stronger and more wear-resistant than low carbon types. They are often used in parts like shafts, axles, and gears.
But they are harder to machine. Tools wear out faster, and heat builds up during cutting. You’ll need reasonable chip control, sharp tools, and a steady setup. Using cutting fluid helps reduce friction and heat.
Stahl mit hohem Kohlenstoffgehalt
High carbon steel contains between 0.6% and 1.0% carbon. Common grades include AISI 1080, 1095, and W1 tool steel. These steels are very strong and wear-resistant, making them a popular choice for cutting tools, dies, and springs.
Machining these steels is challenging. Their hardness wears out tools quickly. You’ll need slower cutting speeds, rigid machines, and high-quality inserts. Using annealed (softened) material or preheating can make machining easier.
Effects of Carbon Content on Machining Behavior
As carbon content increases, steel becomes harder and stronger, but also harder to machine. High-carbon steels need more power to cut, produce more heat, and shorten tool life.
Low-carbon steels are easier to cut. They allow faster speeds and reduce tool wear. But they don’t offer the same strength or durability.
Key Properties Affecting Machinability
Before machining carbon steel, it’s helpful to know how its physical properties affect the cutting process. Hardness, ductility, and thermal behavior all influence tool life, speed, and finish quality.
Hardness and Strength Considerations
Harder carbon steel resists cutting. This increases tool wear and can lead to rough finishes. Higher strength also demands more cutting force, which puts more stress on machines and tools.
Low-carbon steels are softer and easier to cut. But their strength is lower, so parts may need extra design support. Medium and high-carbon steels require slower speeds and tougher tools to maintain performance.
Ductility and Toughness Factors
Ductility is the ability to bend without cracking. Toughness is resistance to impact or sudden force. Both affect how chips break and how surfaces react during cutting.
Highly ductile steels may create long, stringy chips that clog tools. Tougher steels may resist cracking, but put more pressure on the cutting edge. Using chip breakers and adjusting feeds helps reduce these effects.
Wärmeleitfähigkeit und Wärmebeständigkeit
Carbon steel doesn’t transfer heat as well as some other metals. That means more heat stays in the cutting zone. This causes quicker tool wear and may distort the part.
High-carbon steels get hotter during machining. They often need extra coolant or lower speeds to stay within safe temperature ranges. Controlling heat helps maintain part shape and surface finish.
Essential Machining Techniques for Carbon Steel
Each machining method requires different setups and tool choices. Carbon steel responds well to many cutting techniques, but each one must consider hardness, heat, and chip control to get the best results.
Drehen Operationen
Drehen is used to create round shapes or smooth outer surfaces. Use carbide or high-speed steel inserts for carbon steel. For low-carbon grades, higher speeds and feeds work well. For harder steels, reduce the cutting speed to protect tools.
Always keep the tool sharp. Dull edges cause friction and increase heat. Apply coolant to control temperature and extend tool life. Use a rigid setup to avoid chatter and poor finishes.
Milling Strategies
Mahlen shapes flat or contoured surfaces. Climb milling is often preferred for carbon steel. It gives better chip removal and a cleaner finish. For soft steels, faster feeds work well. For hard steels, slow down and use coated tools.
Check tool paths for smooth transitions. Sudden changes increase tool stress and can break inserts. Maintain consistent engagement to reduce vibration and improve part quality.
Drilling and Tapping Best Practices
Wenn drilling carbon steel, use split-point drills or cobalt bits for clean entry. Use moderate speeds and steady pressure. For deeper holes, peck drilling helps remove chips and reduce heat.
Tippen needs precise alignment and the proper lubricant. Choose taps rated for steel, and reduce speed to avoid broken threads. For harder grades, use thread mills or roll taps to minimize stress on the tap.

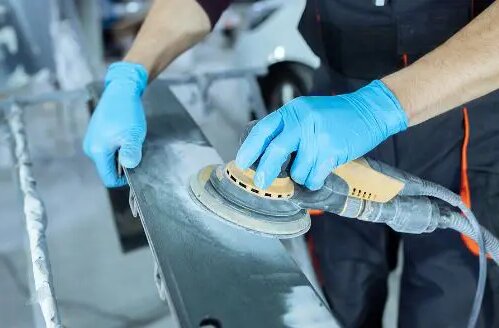

Grinding and Finishing Methods
Schleifen refines surfaces and tightens tolerances. Use aluminum oxide wheels for carbon steel. Keep speeds low to avoid overheating. Too much heat causes surface burns or changes in hardness.
After grinding, check for burrs or sharp edges. Entgraten and polish to finish the part. For a smoother surface, use fine-grit belts or polishing compounds. This helps prepare parts for coating, painting, or assembly.
Cutting Tools and Tool Materials
Choosing the right tools makes a big difference when machining carbon steel. Tool geometry, material, and coating all affect how well the tool performs and how long it lasts.
Best Tool Geometries for Carbon Steel
Sharp edges and proper clearance angles help reduce cutting force. Use a positive rake angle to make cutting smoother and reduce heat. A chip breaker design is helpful, especially with ductile carbon steels that form long chips.
For harder steels, a smaller nose radius gives better control and reduces tool pressure. Always match the geometry to the steel type and the cutting method to avoid vibration and edge chipping.
Carbide vs. High-Speed Steel (HSS) Tools
Carbide tools are more complex and last longer. They resist wear and hold up better at high speeds. They work best for medium and high-carbon steels or when cutting large batches.
HSS tools are cheaper and easier to grind. They are suitable for low-carbon steels or short runs. Use them when cutting softer materials or when cost is a concern.
Coatings for Extended Tool Life
Coatings improve wear resistance, reduce friction, and control heat. Titanium Nitride (TiN) is a common choice for general machining. It works well on low and medium-carbon steels.
For more demanding jobs, use Titanium Carbonitride (TiCN) or Titanium Aluminum Nitride (TiAlN). These coatings handle more heat and extend tool life on harder steels.
Machining Parameters and Optimization
Tuning your machining settings helps reduce tool wear, improve surface quality, and boost productivity. Getting the speeds, feeds, and coolant just right makes carbon steel machining more stable and repeatable.
Speeds and Feeds
Start with lower cutting speeds for harder carbon steels to protect the tool. Use higher speeds for soft, low-carbon grades. Keep feed rates steady to avoid chatter.
If the speed is too high, tools wear out fast. If the feed is too low, the tool may rub instead of cut. Follow the tool manufacturer’s charts for starting values, then fine-tune based on results.
Depth of Cut and Chip Control
Deeper cuts remove more material but generate more heat and stress. For roughing, take heavier cuts with slower feeds. For finishing, take lighter cuts to improve accuracy and surface finish.
Watch how the chips form. Long, curled chips are standard in low-carbon steel. Use chip breakers to avoid tool clogging. Reasonable chip control reduces downtime and protects the tool edge.

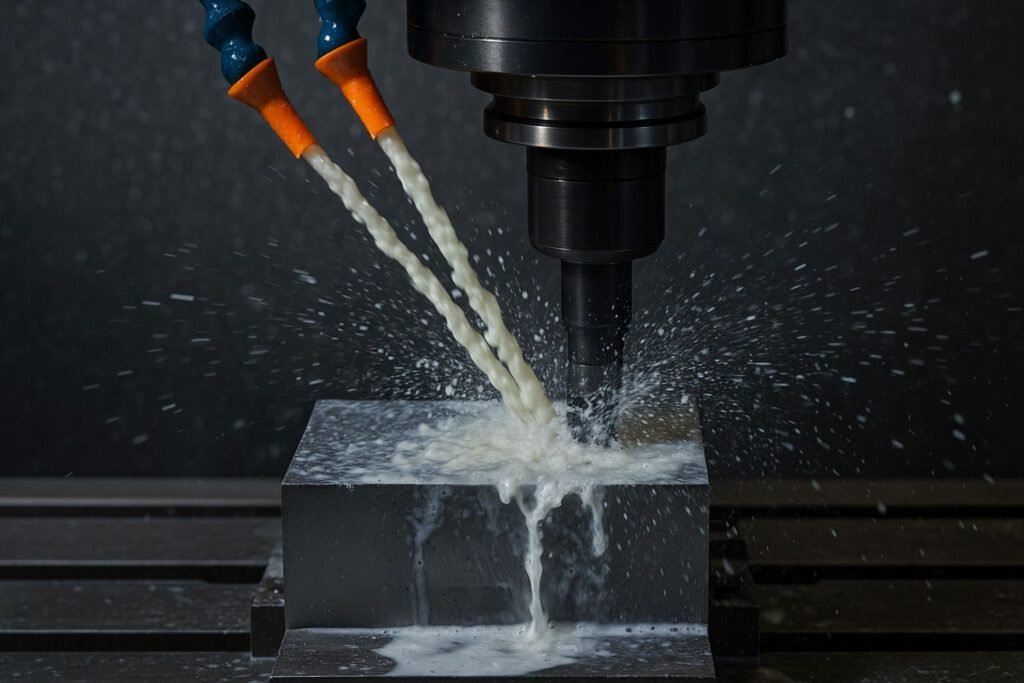

Coolant and Lubrication Techniques
Coolants keep cutting temperatures down and help flush away chips. Use water-soluble fluids for most carbon steel jobs. Apply directly at the cutting zone.
For drilling and tapping, cutting oils work better. They stick to the tool and reduce friction. Keep the coolant clean and flowing. Poor cooling leads to part warping, tool wear, and rough surfaces.
Common Challenges in Carbon Steel Machining
Machining carbon steel isn’t always smooth. Several problems can show up during cutting. These issues affect surface quality, part accuracy, and tool life. Knowing what to watch for helps you fix issues early.
Work Hardening and Surface Integrity
Work hardening happens when the steel surface becomes harder after cutting. This makes the next cut more difficult and increases tool wear. It can lead to rough surfaces and dimensional errors.
To reduce work hardening, use sharp tools and keep the feed rate steady. Avoid rubbing the tool on the surface without cutting. Always cut below the hardened layer to get a clean pass.
Built-Up Edge (BUE) Prevention
BUE forms when material sticks to the tool’s edge. It changes the cutting angle and leads to a poor surface finish. It also increases friction and can cause tool breakage.
To prevent BUE, use coated tools and the correct cutting speed. Increase the speed slightly or use a sharper tool edge. Coolants also help reduce sticking by lowering the heat at the contact point.
Managing Heat and Thermal Distortion
Carbon steel holds heat near the cutting area. Excess heat causes parts to expand or warp, leading to size errors. It also shortens tool life and may damage surface quality.
Use enough coolant and keep cutting passes short when machining tight-tolerance parts. Let the part cool between steps if needed. Stable machine setups and sharp tools also help keep heat under control.
Schlussfolgerung
Carbon steel machining requires the right balance of material knowledge, tool selection, and process control. Each type of carbon steel—low, medium, or high—behaves differently during cutting. Factors like hardness, chip control, and heat buildup must be handled carefully to protect tools and keep part quality high.
