Metal parts often need added functionality—whether it’s for fitting, folding, or assembly. However, when grooves are required, manufacturers may encounter issues such as poor tool wear, part distortion, or uneven results. These issues can affect both cost and quality. The process may seem simple, but selecting the correct method and tool can make all the difference.
Are you curious to learn more about effective metal grooving methods and applications? Below, we’ll explore practical techniques and essential tools for reliable results.
What Is Metal Grooving?
Metal grooving removes material from a metal surface to create a recessed channel. These grooves can help with bending, joining, sealing, or guiding parts during assembly.
Grooves can be broad or narrow. They can be shallow or deep. Some are cut in a straight line. Others follow a curved or circular path. The shape depends on the job’s needs.
Grooving is common in sheet metal, CNC-turned parts, and tubing. It helps improve part fit, reduces stress in bending, or allows precise positioning in assemblies.

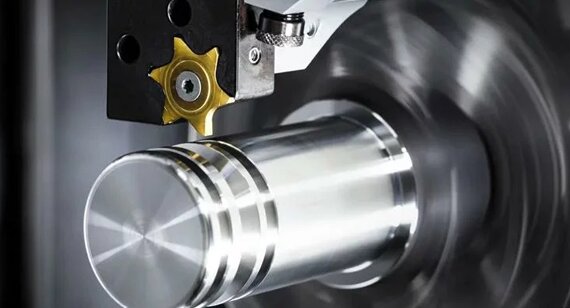

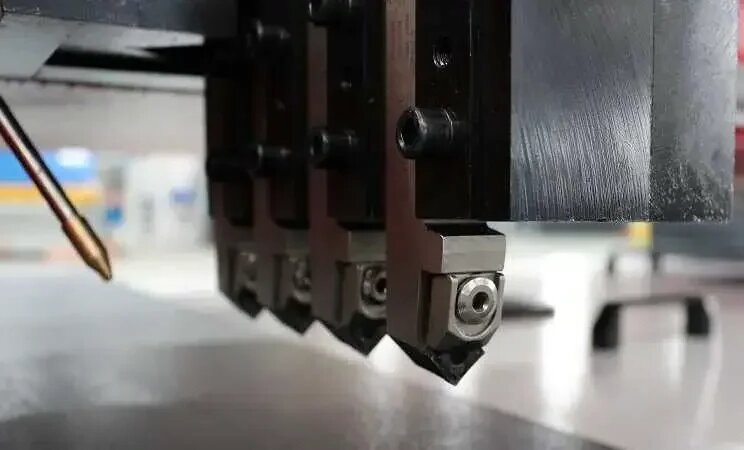

Common Metal Grooving Methods
Different projects need different grooving methods. The method you choose affects speed, accuracy, and surface quality. Below are four common ways to groove metal and when to use them.
CNC Machining for Precision Grooves
CNC machines are used for cutting accurate grooves into metal. The machine moves a tool along a programmed path to remove material. This method is well-suited for achieving tight tolerances and consistent results.
It’s best for complex shapes or when you need to hold tight dimensions. Common in aerospace, automotive, and electronics parts. It works with aluminum, stainless steel, and various other materials.
Tool choice matters. End mills or grooving inserts are often used, depending on the groove shape. Coolant is usually needed to reduce heat and wear.
Manual Grooving Techniques
Manual grooving is done using hand tools or basic machines. It’s slower but useful for small batches or prototype work. You can use chisels, files, or a basic lathe with manual controls.
This method provides the operator with complete control over the process. It’s flexible and low-cost for short runs. However, it depends on the operator’s skill.
Surface finish and groove accuracy may not be as precise as those achieved with automated methods. Still, it’s useful for quick adjustments or testing new designs.
Laser Grooving for Thin and Delicate Metals
Laser grooving uses focused light to vaporize material along a groove path. It’s precise and non-contact, making it suitable for use on thin sheets or sensitive parts.
This method gives smooth edges and excellent grooves. It’s common in electronics, medical devices, and high-end custom parts. It is best suited for metals such as aluminum, titanium, or thin stainless steel.
Because it uses heat, thermal control is key. Too much heat can cause the part to warp. Shielding gas or controlled settings can reduce that risk.
Grinding-Based Grooving
Slijpen uses a rotating abrasive wheel to cut grooves into the workpiece. It’s used when the material is rigid or when very smooth finishes are needed.
Grinding works well for hardened steel or carbide parts. The groove edges come out sharp and clean. It’s slower than CNC but more precise for some shapes.
Used in tooling, mold making, or high-wear parts. Coolant is used to avoid overheating and preserve surface quality.
Key Tools and Equipment
Grooving requires the right tools to match the metal type, groove shape, and production volume. Here are the primary tools used in metal grooving.
Grooving Inserts and Toolholders
Grooving inserts are cutting tips made from carbide or high-speed steel. They come in different widths, shapes, and edge styles. These inserts fit into tool holders that lock them in place during cutting.
The insert removes metal by moving along a set path. You can replace worn inserts without needing to replace the entire tool. This reduces tooling costs and maintains high accuracy.
Inserts are used in both CNC and manual machines. They’re ideal for grooving round parts on lathes or flat parts on mills.
CNC Lathes and Milling Machines
CNC lathes and mills are the most common machines for grooving. Lathes are best suited for producing round parts, such as shafts or bushings. The part rotates, and the insert cuts the groove at a fixed position.
Milling machines hold the part still while the cutter moves to shape the groove. They handle flat parts, irregular profiles, or angled grooves. Both machines allow fast changes and repeatable precision.
These machines are often paired with tool changers, coolant systems, and digital controls for better speed and consistency.
Specialty Grooving Tools for Sheet Metal
Sheet metal grooving needs lighter, more flexible tools. These include press brake grooving dies, handheld nibblers, or rollers with built-in groove patterns.
Some tools use forming rather than cutting. For example, a V-die in a press brake can create bend relief grooves. These help reduce cracking in thick or brittle sheets.
These tools are used in HVAC, behuizingen, kastenen custom panels. They’re suitable for thin metals, such as aluminum, stainless steel, or galvanized steel.

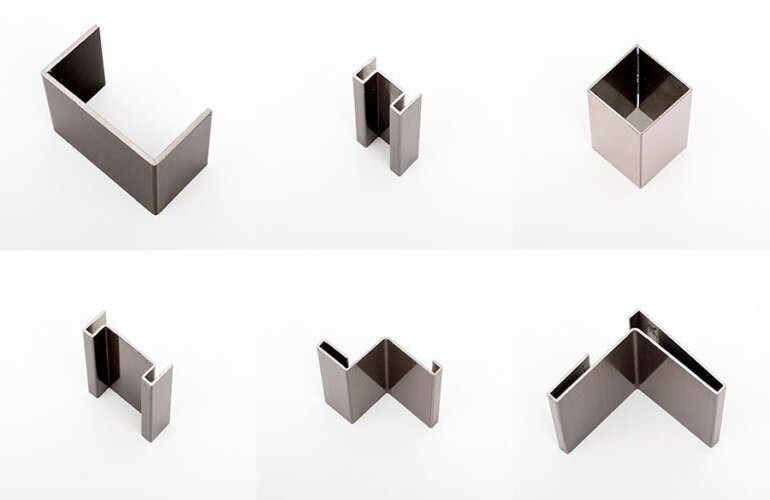

Types of Metal Grooves
The groove shape affects how the part functions. Each groove type serves a distinct purpose and is suited to different tools and types of metal. Here are the most common ones.
V-Grooves
V-grooves have angled sides that meet at a point. They are often used to guide bending or folding in sheet metal. This groove helps create clean, sharp bends with less material stress.
V-grooves can also aid in alignment during assembly. They are easy to make with milling tools or press brake dies. Best for thin to medium-thickness materials.
U-Grooves
U-grooves have a rounded bottom with vertical or slightly curved sides. They allow better flow in applications where fluids or wires pass through. This shape also reduces stress concentration compared to sharp corners.
Common in piping, tubing, and channels. U-grooves are made using ball-end mills, lathes, or grinding wheels. They are ideal for soft metals like aluminum and copper but can also work with steel.
Square Grooves
Square grooves have straight vertical sides and a flat bottom. They are often used for lassen prep, where the groove needs to hold filler material.
They are also used for sliding parts or where exact depth control is needed. Square grooves provide a stable base and consistent fit. These are cut with standard end mills or grooving inserts. They work best on flat surfaces or rotating round parts.
Custom Profile Grooves
Custom grooves follow unique shapes. They might combine curves, angles, or steps. These are used when standard grooves can’t meet design or function needs.
Custom grooves often appear in aerospace, medical, or custom enclosures. Creating them usually needs CNC programming, special inserts, or form tools.
Applications of Metal Grooving in Industry
Grooves are used in many industries for both form and function. The right groove can improve looks, fit, or performance. Here are four key uses in metalworking.
Bending Preparation in Sheet Metal
Grooves help make sharp, accurate bends without cracking the metal. A V-groove cut into the bend line allows the sheet to fold along that path. This is common in enclosures, control panels, and architectural parts. It reduces spring back and keeps edges clean.
Aesthetic Panel Designs
Grooves are also used for decoration. They add texture, lines, or patterns to metal panels. These can be shallow cuts for visual detail or deeper ones to guide assembly. Common in consumer electronics, appliances, and interior metalwork.
Mechanical Fittings
Grooves help parts lock, fit, or align during assembly. They can hold clips, O-rings, or slide rails. This reduces the need for extra fasteners. Used in machinery, equipment housings, and structural supports.
Heat Sink Channels
Grooves increase surface area and guide airflow in heat sinks. These help metal parts cool faster by letting heat escape more easily. Grooves are cut using milling or extrusion, depending on the part design.
Process Parameters That Affect Groove Quality
Groove quality depends heavily on machining settings and the condition of the tool. Adjusting these factors correctly improves accuracy, finish, and tool life.
Feed Rate and Cutting Speed
The feed rate controls how quickly the tool moves into the material. If the feed rate is too high, grooves can be rough or inaccurate. A slower feed rate usually gives a better surface finish and tighter tolerances.
Cutting speed refers to the rate at which the tool rotates or moves across the material. High speeds can cause tools to heat up and wear out quickly. Low speeds can increase cutting force and cause rough edges.
Tool Wear and Replacement
Tool wear has a direct impact on groove accuracy and quality. As cutting tools become dull, grooves get rougher, and dimensions change.
Replace or sharpen tools at regular intervals. Keep track of tool life by regularly checking the grooves. Inserts should be swapped out when grooves become less precise.
Coolant and Lubrication Use
Grooving generates heat, which can damage tools and parts. Coolants or lubricants reduce this heat and extend tool life.
Coolants also flush chips away from the cutting area. This helps maintain a clean, smooth groove. Use the correct coolant type for the material and cutting method.
Design Considerations for Grooved Parts
Designing a grooved part requires more than just picking a shape. Each groove must match the function, material, and process. These key points help ensure the part works as expected.
Groove Depth and Width Calculations
Groove size affects fit, strength, and production. If the groove is too deep, the part may weaken or warp. If it is too shallow, it might not work as intended.
The width must match the tool used. It also needs to allow space for inserts, wires, or weld filler, depending on the groove’s use.
Wall Thickness and Bend Radius Compatibility
Grooving reduces wall thickness in the cut area. If the remaining metal is too thin, the part might crack during bending or fail in use.
Make sure the groove does not go deeper than needed. For bent parts, check that the groove line supports the required bend radius.
Stress Concentration and Structural Integrity
Grooves can become stress risers if not properly placed or shaped. Sharp corners in grooves cause stress and may cause cracks.
Use rounded bottoms or gradual transitions to distribute the load evenly. This improves part life and reliability. Run simulations or use experience-based guidelines to avoid failure in high-load or vibration-heavy uses.
Conclusie
Metal grooving is a key process in fabrication. It helps shape, fit, and function across many industries. Whether using CNC machines, lasers, or manual tools, the method should be tailored to match the material and part requirements. Choosing the right tool, managing parameters effectively, and designing carefully all ensure quality results.
Are you looking to improve your metal parts with custom grooving? Neem vandaag nog contact met ons op to get expert support and fast solutions for your next project.
