When metal parts start to rust, their performance drops. Many factories try to slow this down using primers or coatings. However, not all of these methods work well or last very long. Black phosphate coating offers a better solution by protecting the metal from the surface. It forms a tough layer that boosts strength and reduces wear.
Black phosphate has several advantages. The process is fast and easy to apply, and it works on many types of steel parts. Next, look at how black phosphate coating works, its key features, and where it is most commonly used.
What Is Black Phosphate Coating?
Black phosphate coating is a chemical conversion process. It applies a thin, dark gray or black layer of crystalline phosphate to steel. This happens when the parts are dipped into a hot mixture of phosphoric acid and other added chemicals. The coating sticks to the metal and creates a protective surface that feels slightly rough.
This coating helps lower friction, offers light rust protection, and improves how well oil or paint stays on the surface. It won’t stop rust completely on its own, but it works well as a base layer for other protective finishes.
The coating is thin—usually between 0.0001 and 0.0003 inches thick. It doesn’t affect the part’s size much, so it’s great for parts that need tight fits or precise measurements.
The Science Behind Phosphate Coating
Phosphate coating works through a controlled chemical reaction between steel and a special phosphate solution. This reaction forms a crystal layer that bonds to the metal surface. The result is a strong, protective finish that improves the part’s performance.
Chemical Composition of Black Phosphate
Black phosphate coatings are mostly made from iron phosphate (FePO₄). They often include extra elements like manganese or zinc. The coating solution contains phosphoric acid, water, and metal salts. The acid reacts with the surface when a steel part is dipped into this heated mix.
This reaction lightly dissolves the metal. At the same time, phosphate crystals form and attach to the surface. These dark gray or black crystals have a uniform, slightly rough texture. This texture helps oils and paints stick better.
The coating doesn’t just sit on top of the part—it fuses with the surface. This bonding gives the layer its strength and helps the part hold up better under stress and friction.
The Role of Manganese vs. Zinc in Coatings
Manganese and zinc are common additives in phosphate coatings. Each one provides different benefits, depending on the part’s needs.
Manganese phosphate (MnPO₄) creates a thicker, tougher coating. It’s great for moving parts like gears or bushings. The larger crystals hold more oil, which helps with lubrication and reduces wear.
Zinc phosphate（Zn₃(PO₄)₂） forms a smoother, finer layer. It’s better at preventing rust and helping paint stick. Many car parts are coated with zinc phosphate before painting.
Black phosphate usually contains more zinc, which makes it better for general use, especially when the focus is on rust protection and appearance instead of heavy wear. The choice between manganese and zinc depends on how the part will be used in the real world.
How does the Black Phosphate Coating Process Work？
The black phosphate coating process involves several straightforward steps. Each one affects how the final surface looks, how long it lasts, and how well it performs in real-world use.
Vorbereitung der Oberfläche
The first step is to clean the metal part. All grease, oil, dirt, and rust must be removed. If the surface isn’t clean, the coating won’t stick well and may not last.
Most parts undergo an alkaline degreaser to remove oils from cutting or handling. If there’s rust or an old coating, acid pickling might be used to strip it off. After cleaning, the part is rinsed with water to remove leftover chemicals.
Phosphating Bath Chemistry and Conditions
Next, the part is placed into a heated phosphate bath. This bath contains phosphoric acid, zinc or manganese salts, and other additives. The temperature is usually kept between 160°F and 200°F.
As soon as the part touches the solution, a reaction begins. The metal surface slightly dissolves, and phosphate crystals start forming and bonding.
The time spent in the bath depends on the coating needed. Most parts stay in the solution for 5 to 15 minutes, but longer times give a thicker coating.
Rinsing, Neutralizing, and Drying
Once the phosphating is done, the part is rinsed in clean water. This stops the reaction and removes any loose or extra material. Some processes include a neutralizing rinse to remove leftover acid and avoid stains or powdery buildup.
After rinsing, the part is dried. Drying can be done with air blowers, heating, or both. The part needs to be fully dry before proceeding to the next step or storing it.
Optional Post-Treatment
Black phosphate coatings are slightly porous, which means they allow some moisture or air through. A final treatment is often added to boost protection.
This post-treatment usually includes oil, wax, or sealants. These fill the tiny holes in the surface and block water or air from reaching the metal. Oil is the most common. It adds a smooth finish, cuts friction, and gives the part a deeper black look.
This final step involves dipping or spraying the part after it’s dry. Although it adds almost no thickness, it makes the coating last longer and work better.
Key Characteristics of Black Phosphate Coating
Black phosphate coating gives steel parts a unique mix of looks and function. Below are the most valued traits that make it popular in many industries.
Surface Appearance and Texture
The coating is dark gray to black. It creates a matte, non-reflective finish. This is ideal for parts with low glare, like tools or firearm components, are preferred.
The texture is slightly rough due to the phosphate crystals. This helps the surface hold oil or paint. The finish is uniform and clean when the process is done correctly.
Corrosion Resistance Properties
By itself, black phosphate offers light corrosion protection. It slows down rust but does not stop it completely. The coating blocks some moisture and air from reaching the bare steel.
When combined with oil or wax, its resistance improves greatly. The top layer fills the pores and keeps out moisture, making it good for indoor use or parts that will be stored before use.
Paint Adhesion Enhancement
The rough, porous surface left by phosphating helps paint stick better. Paint grips into the surface instead of sitting on top. This prevents peeling or flaking over time.
This is why black phosphate is often used as a base coat before painting. It improves both the look and the lifespan of the painted part.
Schmierfähigkeit und Verschleißbeständigkeit
Black phosphate reduces friction between sliding parts. The coating holds oil well, which helps parts move smoothly during use.
This makes it useful for Befestigungsmaterial, gears, and parts that face light wear. It won’t replace hard coatings or Überzug but works well where low-cost, light-duty protection is needed.
Materials Suitable for Black Phosphate Coating
Black phosphate coating works best on ferrous metals (iron-based materials). Here’s what you need to know about material compatibility:
Low and Medium Carbon Steels
Black phosphate works best on low—and medium-carbon steels, which have the right surface chemistry to react with the phosphate solution.

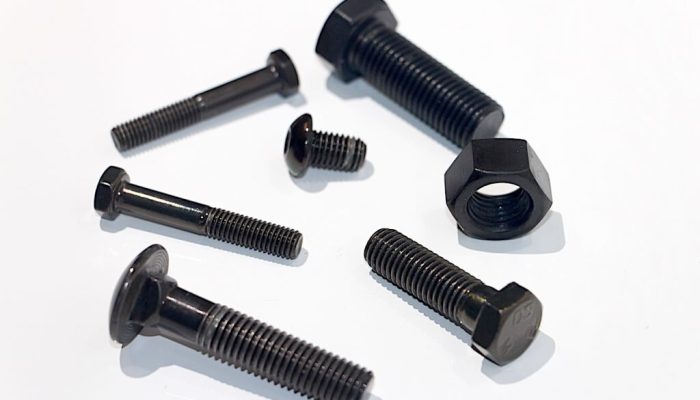

This coating is often used on carbon steel fasteners, Klammern, and bushings. The layer forms evenly and sticks well, improving lubricity and corrosion resistance.
Cast Iron and Alloy Steels
Cast iron can also be phosphated. The coating may not look as smooth as on carbon steel, but it still forms a protective layer. The porous surface of cast iron helps hold oil after coating, which boosts rust resistance.
Some alloy steels also respond well, but it depends on the alloy content. Steels with high amounts of chromium or nickel may not react as strongly, leading to weak or uneven coating.
Unsuitable Metals and Why They Fail
Black phosphate coating will not work on aluminum, stainless steel, copper, or brass. These metals lack the surface chemistry needed for the phosphate crystals to form.
Stainless steel has a passive chromium layer that blocks the reaction. Copper and brass don’t react with the acid in the same way as iron.
If these metals are put in a phosphate bath, they may discolor, pit, or remain uncoated. Other surface treatments, like Eloxieren, Passivierung, or plating, are better options for them.
Black Phosphate vs Black Oxide
Black phosphate and black oxide darken steel surfaces and improve performance. However, they are made through different processes and serve slightly different purposes.
Black phosphate is a chemical conversion coating. It forms a layer of phosphate crystals on the surface of steel. This coating is slightly porous and holds oil well. It helps reduce friction, slows corrosion, and improves paint adhesion. It adds some thickness—about 0.0001 to 0.0003 inches.
Schwarzes Oxid is a chemical treatment too, but it converts the top layer of steel into magnetite (Fe₃O₄). This layer is much thinner—about 0.00002 inches. Black oxide gives a darker, shinier finish. It’s often used on tools, gun parts, and precision components where tight tolerances are critical.
Key Differences:
- Dicke: Phosphate is thicker. Black oxide is very thin.
- Surface feel: Phosphate has a matte, slightly rough texture. Black oxide is smooth and glossy.
- Wear: Phosphate improves lubricity more. Black oxide has lower wear resistance unless post-treated with oil.
- Korrosionsschutz: Both need oil or wax to resist rust well. Phosphate tends to hold oil better.
- Farbe: Phosphate is dark gray to black. Black oxide is deep black.
The right choice depends on the application. Use black phosphate for sliding parts, bolts, and parts that need oil. Choose black oxide when surface detail or close fit matters more.
Benefits of Using Black Phosphate Coating
Black phosphate coating offers practical benefits for parts that need protection, better function, or a specific look. It adds value without high cost or complex processing.
Verbesserte Korrosionsbeständigkeit
The coating acts as a barrier between the metal and the air. On its own, it slows down rust. When paired with oil or sealant, the protection improves a lot.
It keeps moisture out and helps protect parts during storage, shipping, or early use. Adding rust resistance without heavy plating or paint is simple.
Improved Lubricity and Wear Resistance
Black phosphate holds oil very well, making parts more resistant to galling and friction. Fasteners can be installed more easily, and sliding parts move more smoothly.
It reduces metal-on-metal wear in low-load settings. While it won’t replace hard coatings, it works well for basic wear protection on low-stress components.
Aesthetic and Non-Reflective Finish
Black phosphate’s dark, matte look is clean and professional. It hides fingerprints and scratches better than bright finishes.
The low-glare surface is useful in tools, firearms, and machinery. It gives parts a uniform, subtle finish without looking too polished or flashy.
Branchenübergreifende Anwendungen
Black phosphate coating is used in many industries where steel parts need basic protection, smooth movement, or a clean, low-gloss finish. It’s not just for looks; it adds value by improving performance and lifespan.
Automobilindustrie
Black phosphate is standard in the auto industry. Parts like bolts, brackets, bushings, washers, and brake components often get this treatment. The coating helps protect against rust and makes assembly easier.
Firearms
In firearms, black phosphate is used for its matte, non-shiny look. It cuts down glare and gives a professional, tactical appearance. Gun parts like barrels, receivers, and internal pieces benefit from the added surface strength.
Industrielle Maschinen
Black phosphate is also used in factory tools and machines. It’s found on fasteners, sliding parts, shafts, and guides. The coating helps reduce friction, especially between parts that rub or move against each other.
Militärische Ausrüstung
Military equipment often faces harsh conditions. Black phosphate is used for weapon parts, mounts, and hardware. It offers low glare, holds up under handling, and protects against rust when paired with oil.
Schlussfolgerung
Black phosphate coating is a chemical process that forms a thin, dark layer on steel parts. It improves corrosion resistance, adds lubricity, enhances paint adhesion, and gives a clean, matte finish. It’s ideal for fasteners, tools, automotive parts, and military gear.
Need help choosing the right surface finish for your metal parts? Kontakt zu unserem Team for expert guidance on black phosphate coating and more.
