Metal parts don’t always need to be flat or plain. Sometimes, they need texture, grip, or just a better look. Metal embossing offers a long-lasting and visually appealing solution. If you’re working with thin sheets and need raised or recessed designs that are fast, repeatable, and strong—this might be what you’re looking for.
The process may sound simple, but it requires precision. Let’s examine how it works, when to use it, and what it can do.
What is Metal Embossing？
النقش على المعادن هو عملية تُنشئ تصميمات بارزة أو غائرة على الصفائح المعدنية. وهي تستخدم قوالب ذكر وأنثى للضغط على المعدن بقوة. وهذا يشكل أشكالاً مثل الشعارات أو القوام أو علامات التحذير دون قطع أو إزالة المواد. يعمل النقش على تحسين كل من المظهر والتماسك السطحي ويمكن استخدامه لأغراض زخرفية أو وظيفية.
Embossed metal parts have clear, detailed patterns that remain intact over time. They offer improved strength and stiffness due to the formed shapes. The embossed surfaces are resistant to wear, fading, or peeling, making them suitable for long-term use.

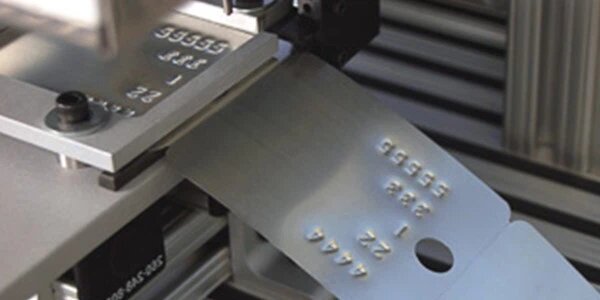

How Do You Emboss on Metal?
Metal embossing turns flat sheets into textured, dimensional designs. Here’s how it’s done step by step.

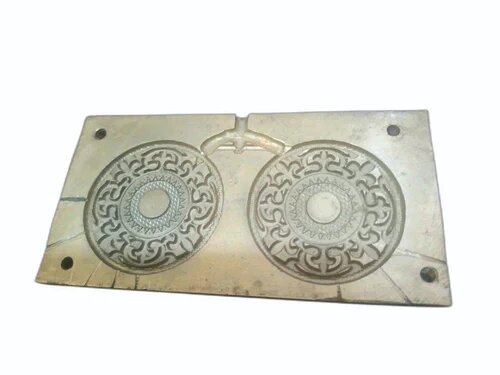

Mold Design and Manufacturing
First, a custom mold (die) is created. The mold has the design carved in reverse. Steel or hardened metal is often used for long-lasting molds. The precision of the mold determines the final embossed quality.
Prepare the Metal Sheet
Choose a soft, malleable metal like aluminum, copper, or brass. Clean the sheet to remove dirt or oils. Annealing (heating and cooling) may soften the metal for easier shaping.
Transferring Designs and Patterns
The design is stamped, etched, or traced onto the metal. For simple projects, hand tools can be used to press the pattern. For complex or high-volume work, a hydraulic press ensures consistency.
Executing the Embossing Process
The metal sheet is placed between the mold and a counter-mold. Pressure is applied, forcing the metal into the die’s grooves. This raises or recesses the design without cutting the material.
المعالجة البعدية
After embossing, the metal may need trimming or filing to remove rough edges. تلميع, تلوين, or protective coatings can enhance durability and appearance.
Techniques in Metal Embossing
Metal embossing can be done by hand or with the aid of machines. The method depends on the design, volume, and required precision.
Traditional Hand Embossing Methods
Hand techniques are best for detailed, artistic work. These methods are slow, but they allow for complete control over each shape.

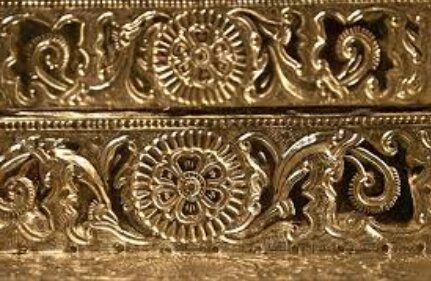

Line Embossing and Repoussé
Line embossing uses simple tools to create raised outlines. It’s done from the back side of the metal. This method works well for curves and soft shapes.
Repoussé pushes the metal from behind to form large raised areas. Artists use this method for decorative pieces. It works best on soft metals, such as copper or brass.
Chasing and Texturing
Chasing is the opposite of repoussé. The tool works on the front of the metal. It sharpens lines or adds detail.
Texturing involves using punches or hammers to create surface patterns. This gives the metal a distinctive appearance or texture.
Machine-Assisted Embossing
Machine methods are used for mass production. They give consistent shapes and faster speeds.
Die Stamping and Pressing
This is the most common method. It uses a pair of dies—a punch and a mold. The metal goes between them. A press forces the punch down—the shape forms in one motion.
This works for large batches. It’s accurate and repeatable.
Laser and CNC Embossing
These are high-tech options. آلات التصنيع باستخدام الحاسب الآلي guide the embossing tool with precision. Laser systems can heat or mark the surface before pressing.
These methods work well for small details or mixed shapes. They offer flexibility and tight tolerances.
Types of Metals Suitable for Embossing
The best metal for embossing depends on the depth of the pattern required and the pressure the sheet can withstand. Some metals are easier to shape than others.
Soft Metals
Soft metals bend easily without cracking. They are the most common choice for embossing.
- الألومنيوم is lightweight and resists rust. It forms clean patterns and is cost-effective.
- نحاس is very soft and flexible. It works well for fine art, nameplates, and detailed textures.
- نحاس combines the looks of gold with the strength of copper. It gives a rich finish and clear lines.
Hard Metals
Harder metals need more pressure but can still be embossed with the right tools.
- فُولاَذ is tough and durable. It is used for industrial panels, covers, and warning signs. Embossing on steel often needs high-tonnage presses.
- فضة و gold are used for decorative or jewelry-grade embossing. Although they are soft, they are expensive and require careful handling.
Thickness and Tolerance Considerations
Choosing the right sheet thickness is key. It affects how deep the embossing can go and how stable the part remains.
Recommended Material Thickness Ranges
For most embossing jobs, the metal sheet should be between 0.3 mm and 3.0 mm thick.
Thin sheets, like 0.3 mm to 1 mm, are easier to emboss with fine detail. They need less pressure but may deform if pressed too hard.
Medium thickness, from 1 mm to 2 mm, gives a good balance. It supports deeper patterns while keeping part strength.
Thicker sheets, 2 mm to 3 mm, can be embossed for industrial use. They need stronger machines and more force to form the shapes.
How does Embossing affect tolerances？
Embossing changes the metal’s shape but keeps its overall volume. Still, it affects the flatness and part size slightly. The raised area adds height, and the surrounding metal may stretch as a result. This can shift hole positions or edge alignment.
You may need to adjust tolerances during the part design process. If the part requires a tight fit, plan for these changes in your drawing or CAD file. Dimensional changes are more noticeable on thicker metal or deep patterns. Always test a prototype before mass production.
Advantages of Metal Embossing
Embossing offers both visual and practical advantages. It adds value without adding extra parts or complicated assembly steps.
تعزيز المظهر الجمالي المحسّن
Embossing gives metal parts a professional, polished look. Raised logos, patterns, or textures can make a product stand out. It’s commonly used to add branding, labels, or decoration. Since the design is part of the metal, it doesn’t fade or peel like paint or stickers.
الفوائد الوظيفية

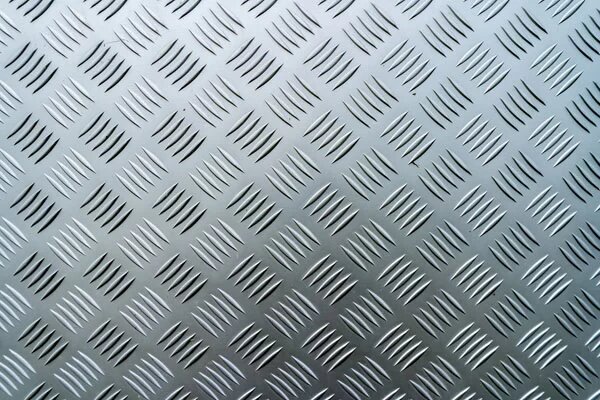

Embossing improves more than looks. It can increase sheet stiffness without adding thickness. This helps reduce material use while keeping strength. It also improves grip or friction, which is helpful for handles, footplates, or control panels.
Cost-Effectiveness for High Volumes
Once the dies are made, embossing is fast and repeatable. There’s no need for extra adhesives, fasteners, or printing steps. It’s ideal for medium to large production runs. With good die maintenance, the process can run thousands of cycles with consistent quality.
القيود والتحديات
While metal embossing is effective, it comes with some limitations. Knowing these helps avoid defects and extra costs during production.
Material Cracking or Warping
Embossing stretches the metal. If the sheet is too thin or the design is too deep, it can crack or warp. Harder metals, such as stainless steel, are more likely to crack if not processed correctly.
تآكل الأدوات وصيانتها
The dies used in embossing face constant pressure and friction. Over time, this causes wear, especially when working with hard metals or abrasive coatings. Worn tools can lead to blurry or uneven patterns.
قيود التصميم
Embossing is most effective for simple, shallow patterns. Deep or complex shapes are more complicated to form and may require multiple steps or special dies. Fine details can be lost if the sheet is too thick or the pattern is too small.
Applications of Embossed Metal
Embossed metal is used in many industries for both function and appearance. Its durability and clean look make it a popular choice in everyday and industrial products.
Architectural and Decorative Panels
Embossed metal adds texture and depth to building interiors and exteriors. It’s used in wall panels, ceiling tiles, elevator doors, and column wraps. These patterns help hide fingerprints and scratches while adding a modern or classic style.
قطع غيار السيارات والفضاء
In vehicles and aircraft, embossed parts help reduce weight while keeping strength. Floor plates, kick panels, and interior trim often use embossed sheets for grip or style. Some embossed parts also help with sound dampening or airflow.
HVAC and Electrical Components
Embossing is used in HVAC panels and duct covers to add stiffness and prevent vibration. It also marks locations for screws or مهمات الربط. In electrical panels, embossed labels can replace printed stickers.
Consumer Products and Branding Plates
Appliances, tools, and electronics often use embossed logos or model numbers. These markings stay readable even in rough use. Branding plates made from embossed metal last longer than printed ones. They also look more high-end.
Design Tips for Embossed Metal Parts
Good design makes the embossing process smoother and yields a cleaner final result. A few small changes early in the design phase can prevent defects and save time.
Optimizing Artwork for Clean Results
Keep designs simple. Use bold shapes, clear lines, and even spacing. Avoid wonderful details, especially on thick metal. Rounded edges form better than sharp corners. Ensure the design has sufficient space around it to avoid interference with holes, bends, or cutouts. For logos or text, use fonts with clean outlines and solid strokes.
Avoiding Common Design Pitfalls
Don’t place embossing too close to edges, holes, or bends. This can distort the part or weaken those features. Make sure raised and recessed features are not too deep, especially in thin metal. If the pattern crosses a bend line, it may stretch unevenly.
CAD File Preparation and Best Practices
Use vector-based formats, such as DXF or DWG, for clean, scalable patterns. Mark the embossed areas on the drawing. Indicate which areas are raised and which are recessed. Include notes about pattern depth, alignment, and tolerance if needed. Make sure the file matches the size and scale of the final part.
خاتمة
Metal embossing is a process that presses patterns into sheet metal to create raised or recessed designs. It works on materials like aluminum, stainless steel, and brass. The method uses matched dies and can be done by hand or machine. Embossing enhances visual appeal, improves grip, increases strength, and facilitates product labeling.
Need embossed metal parts for your project? We support custom designs, fast lead times, and flexible production volumes. Please send us your drawings or ideas today, and let’s bring them to life.
