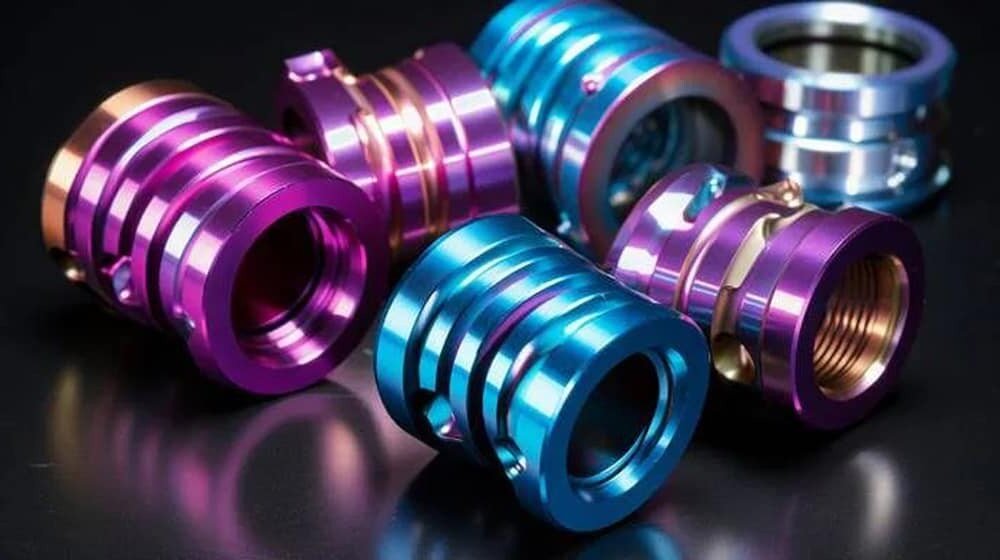

Titanium anodizing transforms the metal’s surface into a durable, corrosion-resistant masterpiece through electrochemical enhancement, where titanium becomes the circuit’s anode. This process, exclusive to metals like titanium, whose oxide layers act as protective barriers, significantly enhances resistance against environmental degradation. It is a choice technique for industries valuing longevity and aesthetic appeal in their components.
Keep reading to learn more about titanium anodizing: its uses, purpose, and how it is done.
What is anodizing?
Defining Anodizing: A Surface Treatment Process
Anodizing titanium is a fascinating and straightforward electrochemical process. We can control the thickness on the surface of titanium by immersing it in an electrolyte and then applying an electric current. This thickness determines the titanium’s color, ranging from rich purples to vibrant blues.
How Anodizing Protects and Beautifies Titanium？
This process increases the resistance of titanium to heat, corrosion, and wear. This process creates a layer of anodized metal fully integrated with the titanium beneath, preventing flaking and chipping. Customers who want to customize their titanium products will love the ability to anodize them in multiple colors without using dyes or other coatings.
Why choose Titanium?
Titanium: Unique Properties
Titanium is unique in its ability to form a protective oxide layer when exposed to the air. Anodizing amplifies this inherent property, increasing its durability and resistance. Titanium’s biocompatibility also makes it ideal for sensitive uses.
Titanium Anodizing vs. Aluminum Anodizing
De verschillen
- Coloration: Titanium Anodizing uses the physical properties in the oxide layer to achieve colors. It does not use dyes and relies on the interference between light waves. Anodizing aluminum often uses dyes to create a variety of colors.
- Oxide layer: Since the oxide layer on titanium is less porous than aluminum, it has different wear resistance and color fastness properties.
- Toepassingen： Both processes improve corrosion and wear resistance. However, titanium anodizing has a higher value in applications that require biocompatibility or specific colors without dyes, while aluminum anodizing can be used for aesthetic purposes and is durable.
Anodized Titanium Types
Type 1 Anodized Titanium
Type 1 titanium anodizing produces a thin oxide film between 0.5 and 2.5 microns on the metal surface. This method is mainly used for decorative purposes and is sometimes called commercial anodizing. The oxide layer, although thin, significantly increases the metal’s resistance to corrosion.
Type 2 Anodized Titanium
Type 2 titanium undergoes anodization to create a thicker oxide layer than that on Type 1. This method increases the hardness of titanium and improves its corrosion resistance. Type 2 anodizing does not produce vibrant colors but rather a layer of titanium oxide approximately 5nm in thickness.
Type 3 Anodized Titanium
Type 3 anodizing creates a thicker layer of titanium oxide, which is denser and more dense. This allows for a more excellent range of colors. This variation allows better control of color by adjusting the thickness of the oxide layer. This process uses sulfuric acid to create a variety of colors.
Differences between Titanium Anodizing Types 1, 2 and 3
The following table lists the differences between the three types of titanium anodizing.
| Properties | Type 1 | Type 2 | Type 3 |
|---|---|---|---|
| Thickness ranges | 0.5 to 2.5 Micrometer | 2.5 to 25 Micrometer | 25 to 100 Micrometer |
| Corrosiebestendigheid | Goed | Better | Best |
| Hardheid | Laag | Hoog | Highest |
| Abrasion resistance | Laag | Hoog | Highest |
| Colour | Dull silver | Gray | Green, blue, violet, purple, golden |
| Uniformiteit | Less | More | Most |
| Commercial names | Chromic acid anodizing | Sulfuric acid anodizing | Hard coat anodizing |
Materials and tools needed
The Complete List of Equipment
The right equipment selection is essential to achieve the desired finish and quality. Essential equipment includes:
- Electrolyte Bath： An electrolyte bath consists of diluted sulfuric acids used as a medium in the anodizing procedure.
- DC power supply: A direct current (DC) power supply is needed to control the flow during anodization.
- Titanium Wires and Racks: Workers use unique holders and suspension systems to keep the titanium parts steady in the electrolyte. This ensures the parts receive uniform exposure and anodization.
- Cathode: The cathode is often made from lead, stainless steel, or platinum. It completes the circuit of the electrolyte.
- Cleaning Supplies： Parts must be cleaned thoroughly before anodizing to remove contaminants.
Safety Gear: Ensure a Safe Anodizing Procedure
Our top priority is safety during the anodizing procedure. Our teams are equipped with all the safety equipment they need:
- Gloves that resist chemical agents: Protects hands from acid electrolyte solutions.
- Eye protection: Safety goggles and face shields will protect you from splashes in the electrolyte.
- Lab Coats or Aprons: Made from chemical-resistant materials to protect your body against accidental spills.
- Ventilatie： Proper ventilation is essential to remove harmful fumes produced during the anodizing procedure.
- Emergency Equipment: Safety showers and eyewash stations are always available in the event of an accidental exposure.
Prepare the Titanium Surface
Cleaning is the first step to successful anodizing.
The first step is to clean the titanium surfaces. This ensures they are free of contaminants, oils, and other debris that may interfere with the anodizing process. Our cleaning protocol includes:
- Ontvetten： Using organic solvents or acidic solutions to remove oil and grease.
- Spoelen: After cleaning, the parts are rinsed thoroughly with deionized water to remove any residue.
- Ets: You can use a mild acid to etch away a thin layer from the surface.
- Final Rinse： Final rinse with deionized Water
Surface Treatment: Techniques to Enhance Anodization
An additional surface treatment after cleaning can improve the quality of anodization. These techniques aim to increase the uniformity and adhesion of the oxide layer.
- Mechanical polishing: To achieve a smooth and uniform surface, mechanical polijsten removes imperfections, preparing the titanium for high-quality finishing.
- Acid Pickling： An acid pickling can refine the surface by removing oxides. This will ensure that the metal is ready for anodizing.
- Texturing： We can use texturing techniques before anodizing to achieve specific surface characteristics for certain applications.
The Anodizing Process
Setting Up Your Anodizing Station
How to Set Up Your Own Business: A Step-by-Step Guide
- Workspace Preparation: Make sure the workspace is well-ventilated, clean, and free from any materials that may interfere with the work or cause a safety risk.
- Assembly of Equipment: Arrange the DC power supply and cathode in your electrolyte, titanium racks, or wires. Secure all electrical connections and position the cathode correctly within the electrolyte.
- Safety measures: Equip the station with chemical-resistant gloves, eye protection, and other safety gear. Confirm that emergency equipment such as eyewash stations is readily accessible.
Tips for a Safe and Efficient Setup
- Organization Is Key: Keep your tools and materials arranged to simplify the process and reduce the risk of accidents.
- Check Connections： Double-check all electrical and piping connections for the electrolyte tub and power supply to avoid leaks or electrical problems.
- Veiligheid eerst: Prioritize safety by wearing the right safety gear and training all staff in emergency procedures.
The Electrolyte Solution
The Right Electrolyte Solutions
Anodizing success is dependent on the choice of electrolyte. An electrolyte solution commonly used for anodizing titanium is diluted with sulfuric acid. This solution is a good compromise between the rate of oxide formation and control over the process.
Prepare and handle the solution.
- Mixing： Dilute sulfuric acid in deionized drinking water to the concentration needed for titanium anodizing. Never add water to acid, and never vice versa, to avoid exothermic reactions.
- Handling: Wear chemical-resistant gloves when handling the solution.
How to Anodize Titanium？
Step 1: Submerge Titanium in Electrolyte Solution
Use titanium wires or racks to suspend the titanium part, which has been cleaned and is ready for use in the electrolyte bath. Ensure the titanium part is submerged in the electrolyte bath and does not touch the cathode.
Step 2: Applying electrical current
Activate DC power to inject a controlled current of electricity through the electrolyte. The desired layer thickness and part dimensions depend on specific voltage and current settings.
Step 3: Monitoring of the Anodizing Process
Watch for signs of an uneven coating. As the oxide layer’s thickness increases, titanium’s color will also change. This allows for precise control. The duration will vary depending on the desired result, from several minutes to more than an hour.
Coloring Titanium
Techniques for Adding Colors
It is unique that the process of color-anodized Titanium does not involve paints or dyes. We use two different techniques at Shengen to color titanium.
- Voltage-Controlled Anodizing： By changing the voltage during the anodizing procedure, we can precisely control the layer’s thickness.
- Multi-Step Anodizing: We can perform multiple anodizing steps, each with a different voltage, to achieve more complex color patterns.
Understanding the Color Spectrum of Anodized Titanium
The interference of light waves reflected off the surface of the titanium and the oxide layer produces the color spectrum. The thinner layers produce colors closer to the violet end of the spectrum, while the thicker layers produce colors closer to the red end.
Afwerking
Sealing: Protecting Anodized Layer
Sealing anodized Titanium is a crucial step in ensuring the durability and longevity of the finish and color. Steam or hot water usually achieves this by hydrating and sealing the outermost oxide layer.
Enhancing the Finish
Some parts can improve their shine by polishing after anodizing or sealing. We carefully polish these parts at Shengen to achieve the desired luster while being careful not to remove the anodized coating.
Post-Anodization
Tips for long-lasting anodized surfaces
- Regular cleaning: Frequent and gentle cleaning will prevent the accumulation of dirt, grime, and other contaminants that can damage the anodized Titanium’s appearance.
- Avoid Harsh conditions: Although anodized Titanium is corrosion-resistant, prolonged exposure to harsh chemicals or environments may degrade the surface. Limit exposure to prolong the life of your titanium.
- Proper storage: Store anodized Titanium parts away from extreme temperatures and direct sunlight.
Veelvoorkomende problemen oplossen
How to Identify and Resolve Anodizing Problems
Anodizing problems can include uneven coloration or dull finishes. Improper surface preparation, incorrect electrolyte composition, or insufficient control of electrical current often cause these problems. We address these issues at Shengen by reviewing our entire process to identify and correct the exact steps that caused the problem.
Preventative measures to avoid anodization flaws
- Careful Surface Preparation： Ensuring the titanium surface is clean and contaminant-free is essential.
- Controlling the Process: By maintaining consistent voltage, temperature, and electrolyte composition, you can avoid problems like uneven coloration or thin oxide layers.
- Regular Maintenance of Equipment: By maintaining all equipment in good condition, you can ensure that the anodizing is consistent and stable.
Advanced Anodizing Techniques
Multi-Color Anodizing Techniques
Shengen pushes the limits of anodizing with parts that have multi-color finishes. Techniques include:
- Sequential anodizing: In this process, they anodize a piece multiple times. Each time, they mask off areas to create patterns or layers of colors. After each anodizing step, they shield parts of the piece and reanodize it at a different voltage.
- Partial immersion: We can achieve gradient effects or distinct color zones by immersing titanium parts in electrolyte solutions and adjusting depth or angle.
Textured Anodizing
Create Patterns and Textures
The tactile anodizing gives the anodized Titanium a new dimension. This is done by:
- Mechanical Texturing： We mechanically etch patterns on the titanium surface before anodizing. Anodizing highlights the textures to create a visually and physically appealing surface.
- Masking techniques: By adding or removing masks in between anodizing stages, we can create complex textures.
Tools and Techniques to Texture a Surface
- Laser Etching： Laser etching is a method of removing material precisely and creating detailed patterns before anodizing. After anodizing, these areas contrast with the unetched, smoother surfaces.
- Stencil masking: Custom-designed stencils are applied to parts of the surface titanium to protect it during the anodizing procedure, resulting in various textures and colors.
Conclusie
Each phase of the anodizing process is executed with great attention to detail, from selecting materials and preparing them to the more advanced techniques for layering colors and creating texture. We at Shengen understand the importance of innovation, quality, and customer satisfaction. We are constantly exploring new technologies and techniques to improve our services.
Heb je een betrouwbare fabrikant van plaatwerkonderdelen nodig? Dan bent u bij Shengen aan het juiste adres. Wij zijn gespecialiseerd in lasersnijden, buigen, oppervlaktebehandeling en lassen van plaatwerk. Neem contact op met Shengen Vandaag nog en zoek hulp bij professionals!
FAQ's:
How long will anodized Titanium last?
Anodized Titanium can last for decades if properly maintained and protected against harsh environments. Anodized layers resist wear, so the vibrant colors and glossy surface remain intact. This makes them an excellent choice for industrial and consumer applications.
Why can’t I anodize Titanium Red?
Anodizing produces colors by reflecting light waves off the oxide layer on the metal surface. This process is not capable of producing red.
What is the effect of voltage on the color of titanium anodized?
The voltage determines the thickness of the oxide film that forms on titanium’s surface. The thicknesses reflect and refract light differently, creating a spectrum of colors. Low voltages create thinner oxide layers that produce colors in the purple and blue end of the spectrum. Higher voltages produce thicker oxide layers, which result in yellow and green colors.
How can I fix anodized or scratched titanium?
The process of repairing scratched anodized Titanium involves removing damaged layers and re-anodizing affected areas. The process involves:
- Remove any contaminants from the area surrounding the scratch.
- If necessary, smooth the scratch with fine-grit paper to achieve a uniform finish.
- Reanodize affected areas by applying the appropriate voltage.
Can I anodize Titanium at Home?
Proper safety precautions and equipment make it possible to anodize titanium at home. A power supply that can deliver the correct voltage and current is required, as well as an electrolyte suitable for the job (such as a diluted solution of acid) and safety gear against electrical and chemical hazards.
